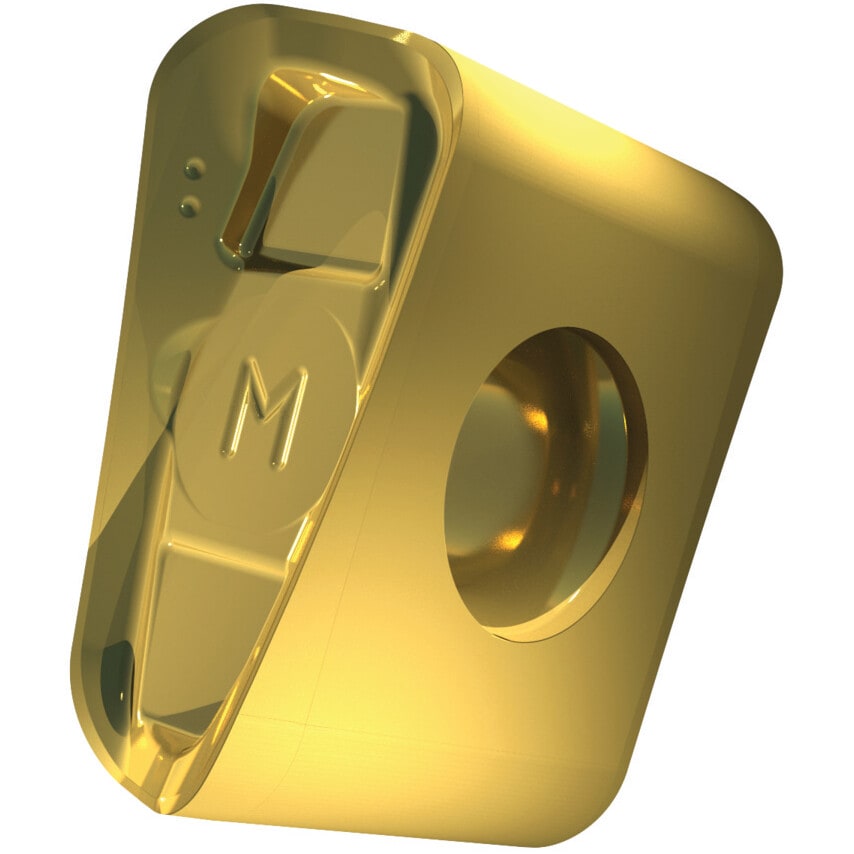

Lnex 121024SR-M M8340 90 Tangential Mill Insert

LNEX 1210 is a rectangular double-sided milling insert with a maximum depth cut of 10.0mm and a 2.4mm corner radius. This milling insert was designed for machining of steel with shoulder mills SLN12X. Features and Benefits With four cutting edges, the insert provides a highly productive solution for a wide range of applications Stable clamping and strong cutting-edge ideal for square shoulder milling, PVD coating provides long tool life and excellent breakage resistance, while also reducing chatter Typical Applications Steel Cast Steel Cast Iron

Insert Style	LNEX 12
Corner Radius	2.4mm
MFR Part No.	8184455
Chipbreaker	M
Cutting Edge Length	13.3mm
Shape	Rectangle
ISO Designation	LNEX 121024SR-M
Thickness	10.26mm
