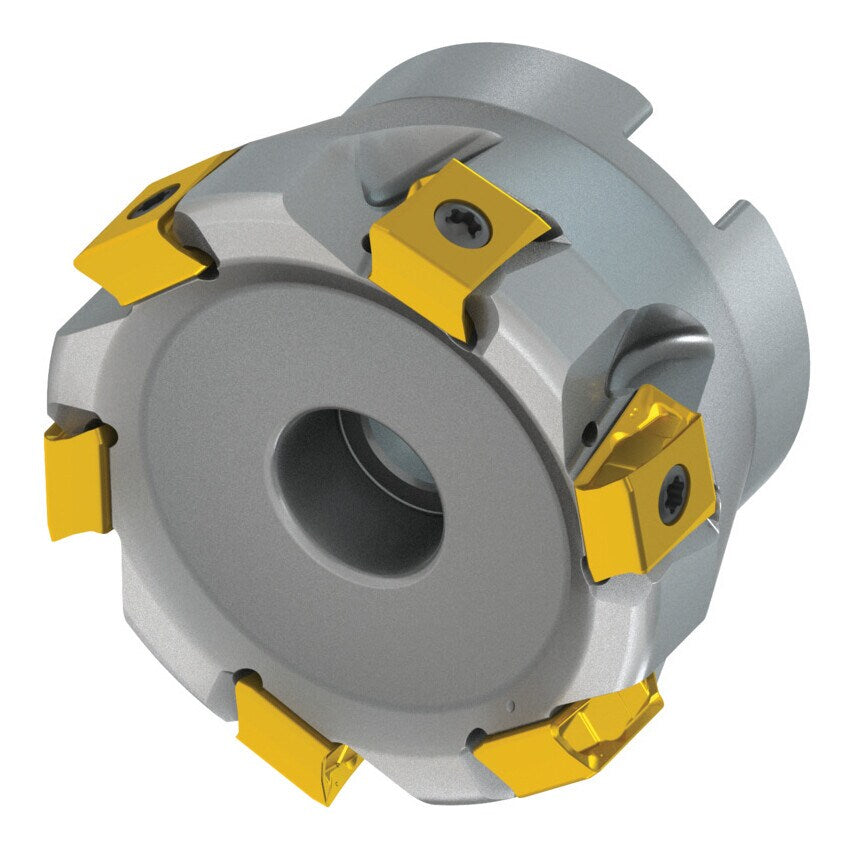

63A06R-S90LN12X-C LN12 90 Tangential Face Mill

Shoulder mill with double negative geometry utilising 6 double sided inserts. Cutting diameter of 63mm with a 90 approach angle and a 22mm connection bore according to DIN 8030-A. 40mm functional and, through coolant and differential pitch for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 10mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Easily accessible large clamping screws for easy handling of inserts Thick cutter core for enhanced rigidity Low vibrations and long tool life for both insert and cutter Typical Applications Cast Iron Steel Cast Steel

ISO Designation	63A06R-S90LN12X-C
Product Type	Tangential Face Mill
Maximum Cutting Diameter	63mm
Coolant Delivery	Coolant Through
Number of Inserts	6
MFR Part No.	8184475
Toolholder Material	Steel
Insert Shape	Rectangle
Cutting Edge Angle	90\u00b0
Height	40mm
Toolholder Style	Square Shoulder Mill
Insert Size	1210
Milling Application	Facing | Helical Interpolation | Plunging | Ramping | Shouldering | Slotting
