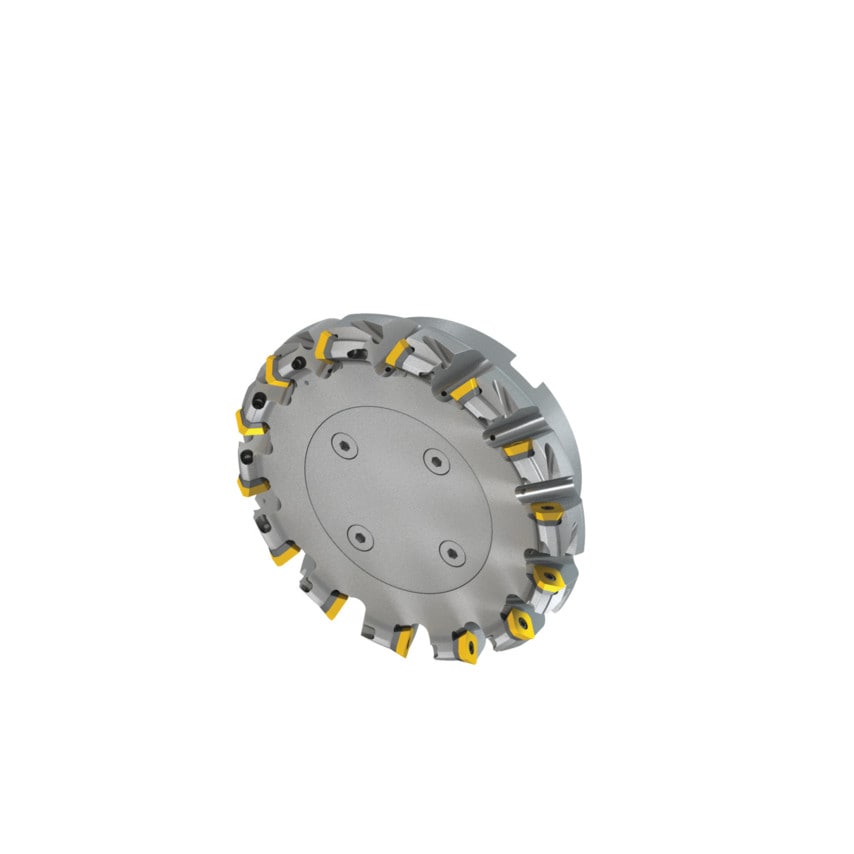

160C14R-S45SD13F-C Ver SD13 45 Face Mill

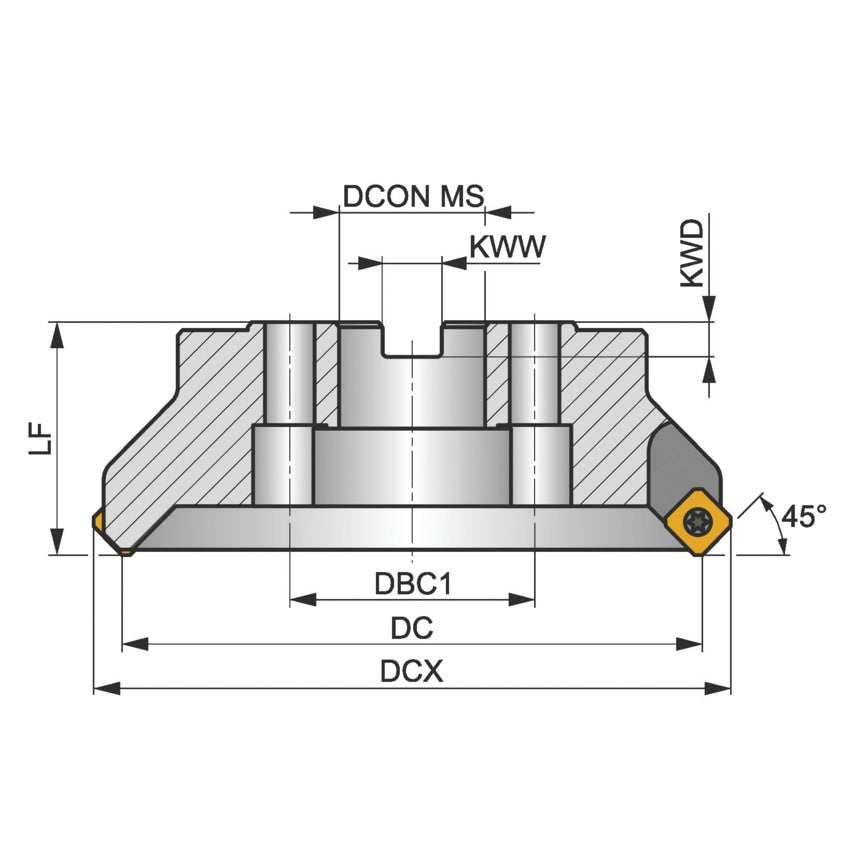

Face mill with positive/negative geometry utilising 10 single-sided inserts. Cutting diameter ranges from 160mm to 172.8mm with a 45 approach angle and a 40mm connection bore according to DIN 8030-C. 63mm functional and, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 6.4mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Carbide shim on cutter seating place for extra protection and durability Typical Applications Hardened Metals Cast Iron Stainless Steel Steel Cast Steel High-temperature alloys Non-ferrous metals

Milling Application	Facing | Helical Interpolation | Plunging | Ramping
Toolholder Style	Face Mill
Coolant Delivery	Coolant Through
Maximum Cutting Diameter	172.8mm
MFR Part No.	8202792
Cutting Edge Angle	45\u00b0
Insert Shape	Square
Height	63mm
Insert Size	13T3
Number of Inserts	14
Toolholder Material	Steel
ISO Designation	160C14R-S45SD13F-C
