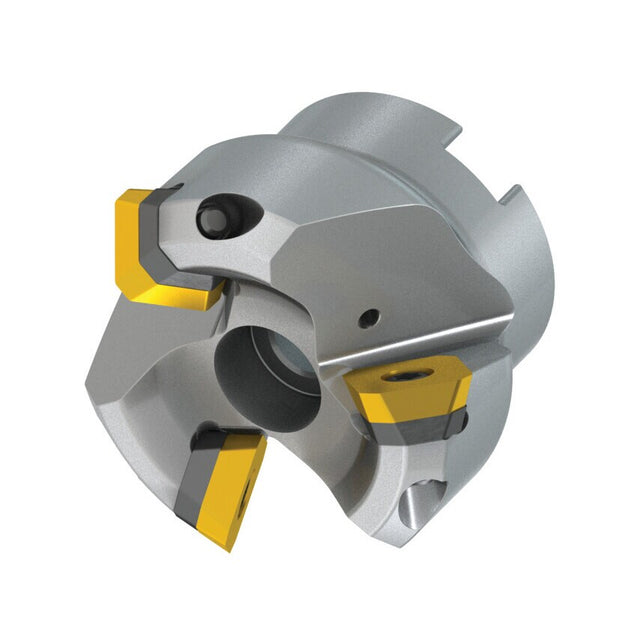

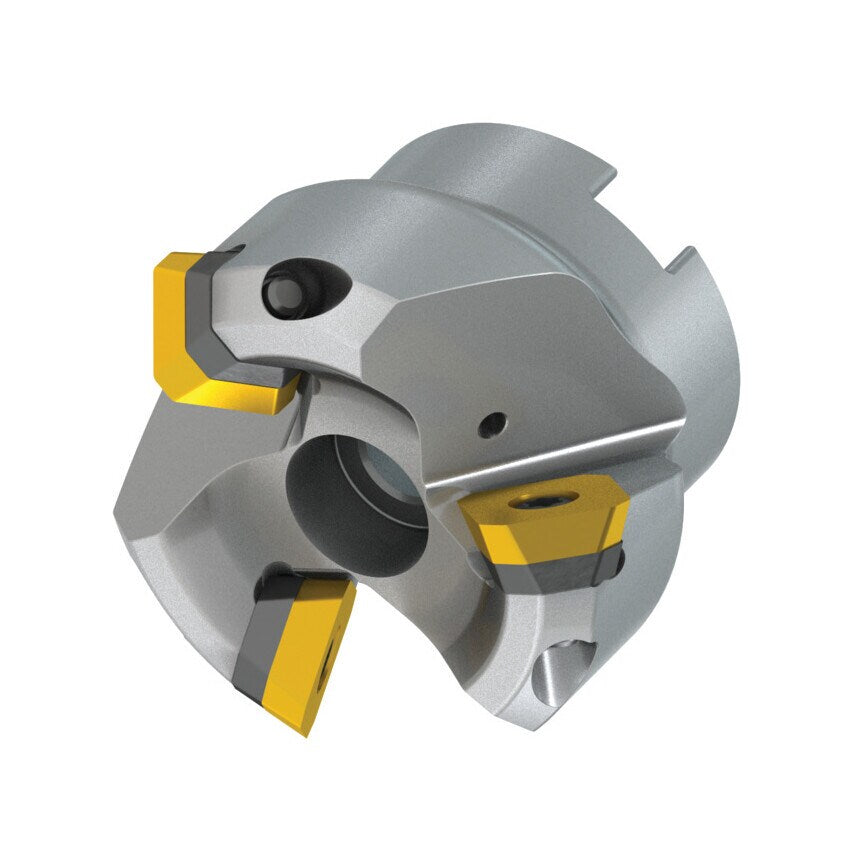

40A03R-S45SD13F-C Ver SD13 45 Face Mill

Face mill with positive/negative geometry utilising 3 single-sided inserts. Cutting diameter ranges from 40mm to 53.5mm with a 45 approach angle and a 16mm connection bore according to DIN 8030-A. 40mm functional and, through coolant for face milling and chamfering with a maximum depth of cut of 6.4mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Carbide shim on cutter seating place for extra protection and durability Typical Applications Hardened Metals Cast Iron Stainless Steel Steel Cast Steel High-temperature alloys Non-ferrous metals

Toolholder Style	Face Mill
ISO Designation	40A03R-S45SD13F-C
Insert Size	13T3
Insert Shape	Square
Toolholder Material	Steel
Number of Inserts	3
Cutting Edge Angle	45\u00b0
Height	40mm
Milling Application	Facing | Helical Interpolation | Plunging | Ramping
Maximum Cutting Diameter	53.5mm
MFR Part No.	8205385
