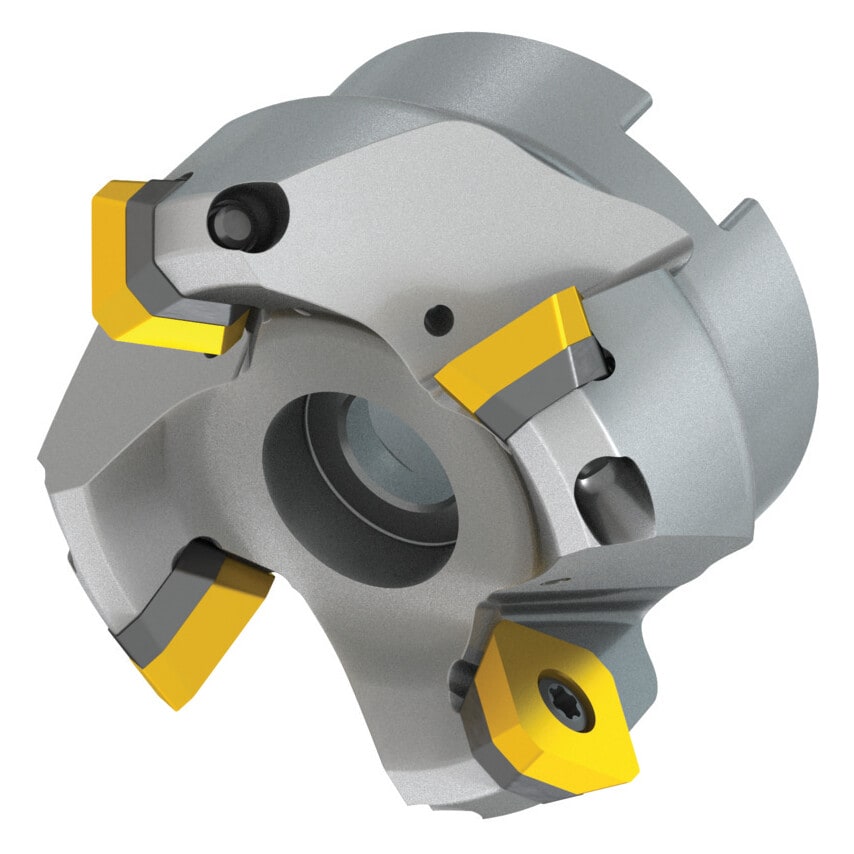

50A04R-S45SD13F-C Ver SD13 45 Face Mill

Face mill with positive/negative geometry utilising 4 single-sided inserts. Cutting diameter ranges from 50mm to 63.5mm with a 45 approach angle and a 22mm connection bore according to DIN 8030-A. 40mm functional and, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 6.4mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Carbide shim on cutter seating place for extra protection and durability Typical Applications Hardened Metals Cast Iron Stainless Steel Steel Cast Steel High-temperature alloys Non-ferrous metals

Milling Application	Facing | Helical Interpolation | Plunging | Ramping
Cutting Edge Angle	45\u00b0
MFR Part No.	8202730
Number of Inserts	4
Insert Size	13T3
Maximum Cutting Diameter	63.5mm
Height	40mm
ISO Designation	50A04R-S45SD13F-C
Insert Shape	Square
Coolant Delivery	Coolant Through
Toolholder Material	Steel
Toolholder Style	Face Mill
