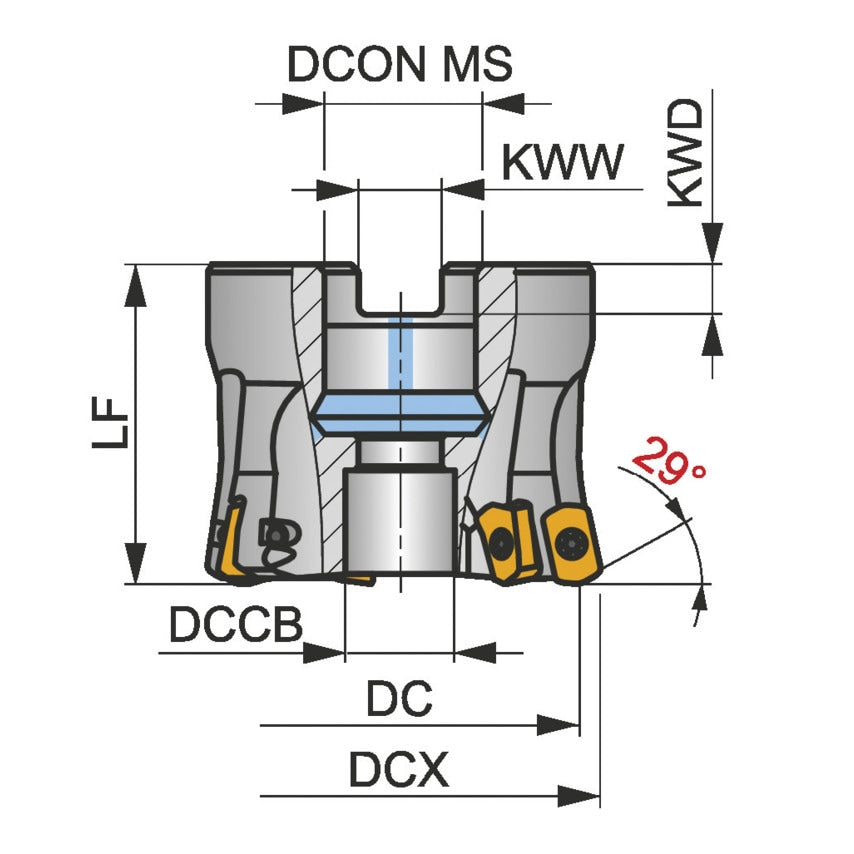

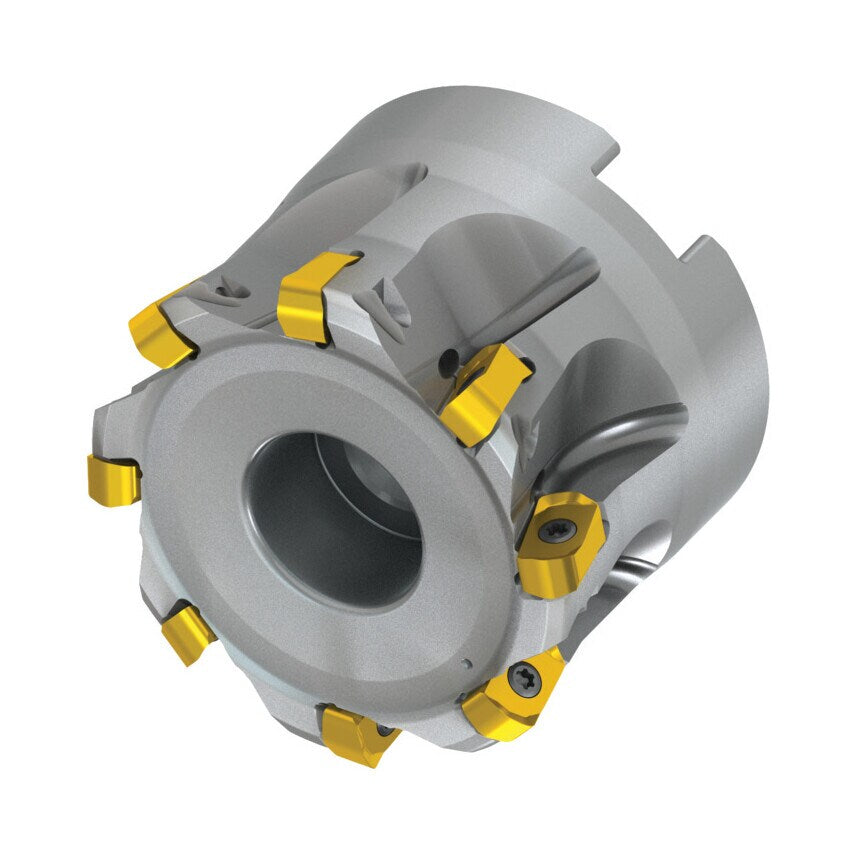

High feed nickelized steel cutter with double negative geometry utilising 8 inserts. Cutting diameter ranges from 47mm to 52mm with a 29 approach angle and a 22mm connection bore according to DIN 8030-A. 40mm functional and, through coolant and differential pitch for face milling, shallow shoulder milling, plunge milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 1mm.
Features and Benefits
Different setting angles prevent overcutting of chips
Typical Applications
Hardened Metals
Cast Iron
Stainless Steel
Steel
Cast Steel
High-temperature alloys
| Maximum Cutting Diameter | 52mm |
| Cutting Edge Angle | 29\u00b0 |
| MFR Part No. | 7259724 |
| Toolholder Material | Steel |
| Toolholder Style | Shell Milling Cutter |
| ISO Designation | 52A08R-SMOBN10-C |
| Milling Application | Facing | Helical Interpolation | Plunging | Ramping |
| Height | 40mm |
| Insert Size | 10T3 |
| Insert Shape | Parallelogram |
| Number of Inserts | 8 |
