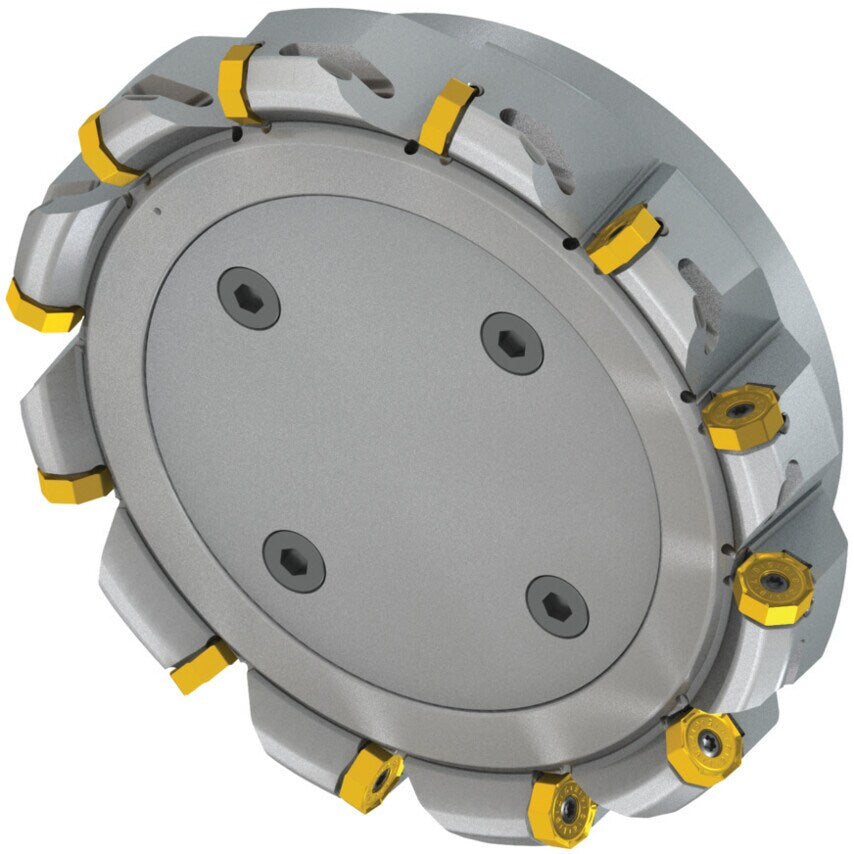

200C12R-S45ON06-C Econ ON06 43 Face Mill

Nickelized steel face mill with double negative geometry utilising 12 double-sided inserts. Cutting diameter ranges from 200mm to 210.8mm with a 43 approach angle and a 60mm connection bore according to DIN 8030-C. 63mm functional and, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of ON.. 4mm, SN.. 7mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Easily accessible large clamping screws for easy handling of inserts Typical Applications Hardened Metals Cast Iron Stainless Steel Steel Cast Steel High-temperature alloys

Insert Size	605
Cutting Edge Angle	43\u00b0
Toolholder Style	Face Mill
ISO Designation	200C12R-S45ON06-C
Number of Inserts	12
Toolholder Material	Steel
MFR Part No.	8347769
Maximum Cutting Diameter	210.8mm
Height	63mm
Milling Application	Facing | Helical Interpolation | Plunging | Ramping
Insert Shape	Octagon
Coolant Delivery	Coolant Through
