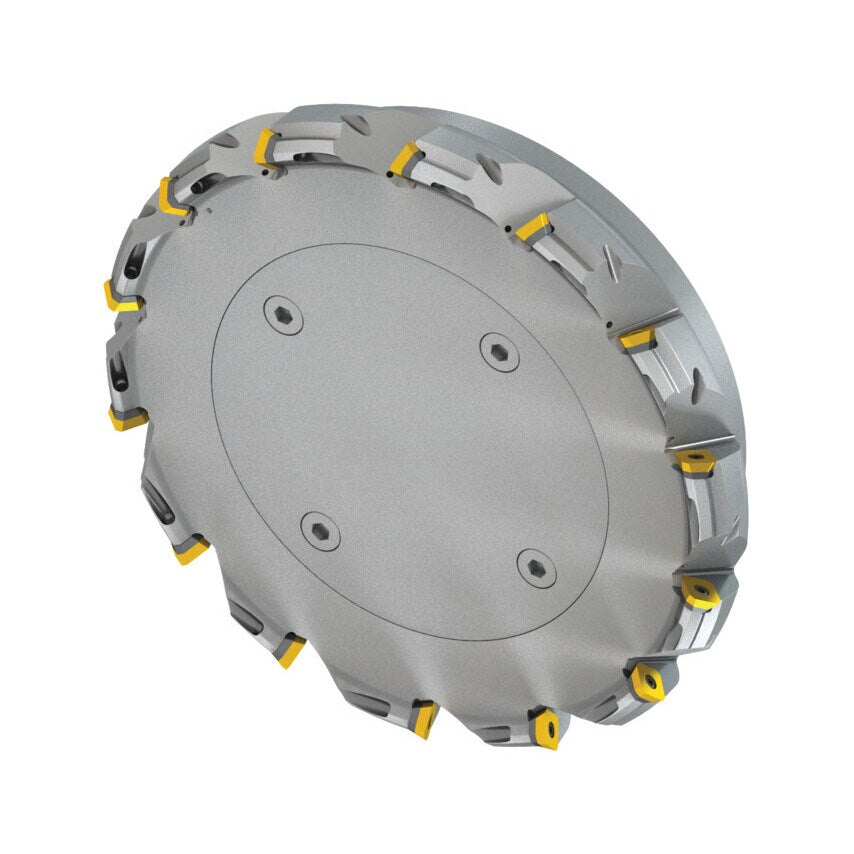

250C14R-S45SD13F-C Ver SD13 45 Face Mill

Face mill with positive/negative geometry utilising 14 single-sided inserts. Cutting diameter ranges from 250mm to 262.8mm with a 45 approach angle and a 60mm connection bore according to DIN 8030-C. 63mm functional and, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 6.4mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Carbide shim on cutter seating place for extra protection and durability Typical Applications Hardened Metals Cast Iron Stainless Steel Steel Cast Steel High-temperature alloys Non-ferrous metals

Maximum Cutting Diameter	262.8mm
Number of Inserts	14
Insert Shape	Square
Milling Application	Facing | Helical Interpolation | Plunging | Ramping
MFR Part No.	8202795
Coolant Delivery	Coolant Through
Toolholder Material	Steel
Height	63mm
Toolholder Style	Face Mill
Insert Size	13T3
ISO Designation	250C14R-S45SD13F-C
Cutting Edge Angle	45\u00b0
