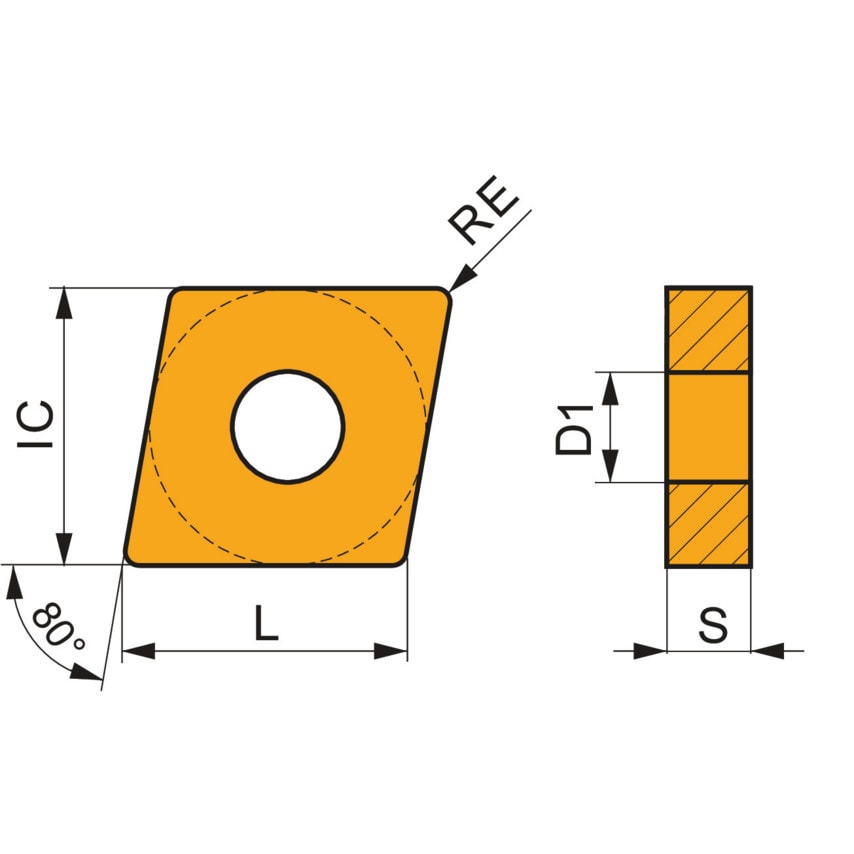

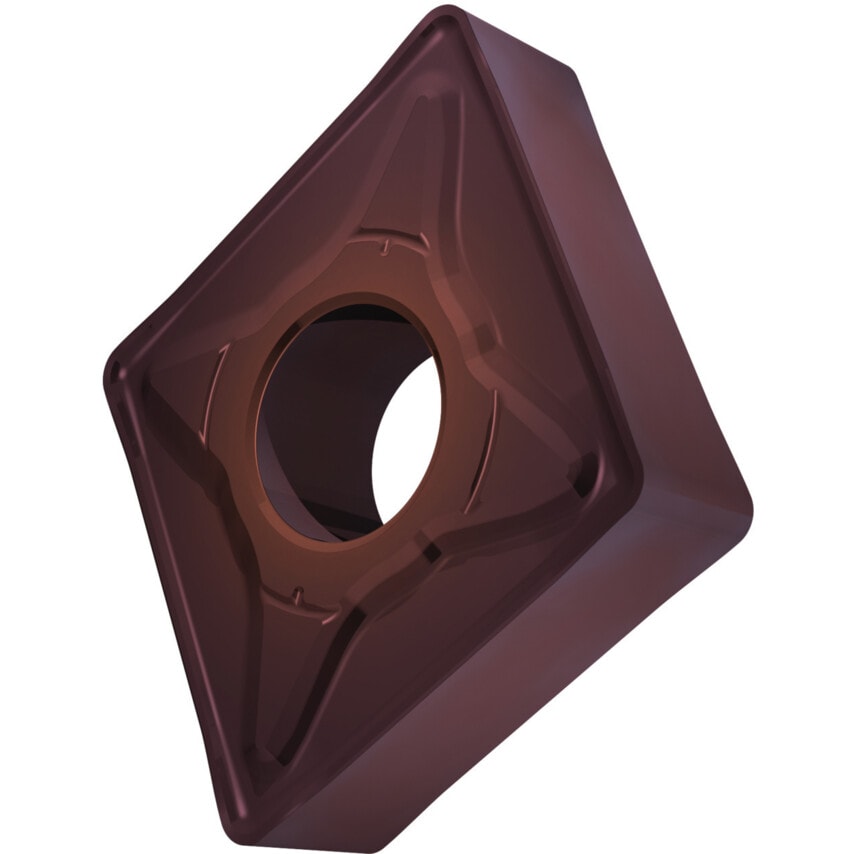

These double-sided 80 rhomboid CNMG turning inserts have a negative insert geometry and were designed for the medium to heavy machining of steels. The inscribed circle has a diameter of 19.05mm, 6.35mm thickness, and 1.2mm nose radius.
Features and Benefits
T9415 is the most advanced MT-CVD coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Typical Applications
Steel
Cast Steel
| Shape | 80\u00b0 Rhombic |
| ISO Designation | CNMG190612-NRM |
| Material Application | Steels |
| Material | Carbide |
| Thickness | 6.35mm |
| Finish/Coating | PVD |
| Cutting Edge Length | 19.3mm |
| Inscribed Circle | 19.05mm |
| MFR Part No. | 8342347 |
| Insert Size | 19 |
| Chipbreaker | NRM |
| Corner Radius | 1.2mm |
