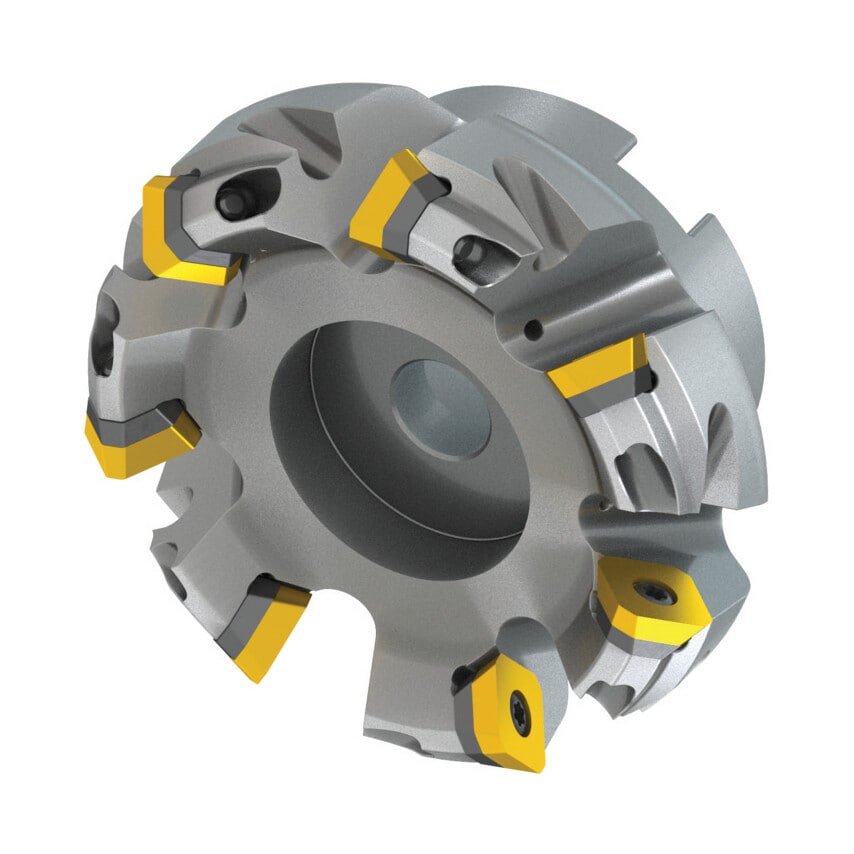

80A07R-S45SD13F-C Ver SD13 45 Face Mill

Face mill with positive/negative geometry utilising 7 single-sided inserts. Cutting diameter ranges from 80mm to 93.4mm with a 45 approach angle and a 27mm connection bore according to DIN 8030-A. 50mm functional and, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 6.4mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Carbide shim on cutter seating place for extra protection and durability Typical Applications Hardened Metals Cast Iron Stainless Steel Steel Cast Steel High-temperature alloys Non-ferrous metals

Toolholder Style	Face Mill
Insert Size	13T3
Toolholder Material	Steel
Coolant Delivery	Coolant Through
Number of Inserts	7
Insert Shape	Square
Maximum Cutting Diameter	93.4mm
Height	50mm
Milling Application	Facing | Helical Interpolation | Plunging | Ramping
ISO Designation	80A07R-S45SD13F-C
MFR Part No.	8202732
Cutting Edge Angle	45\u00b0
