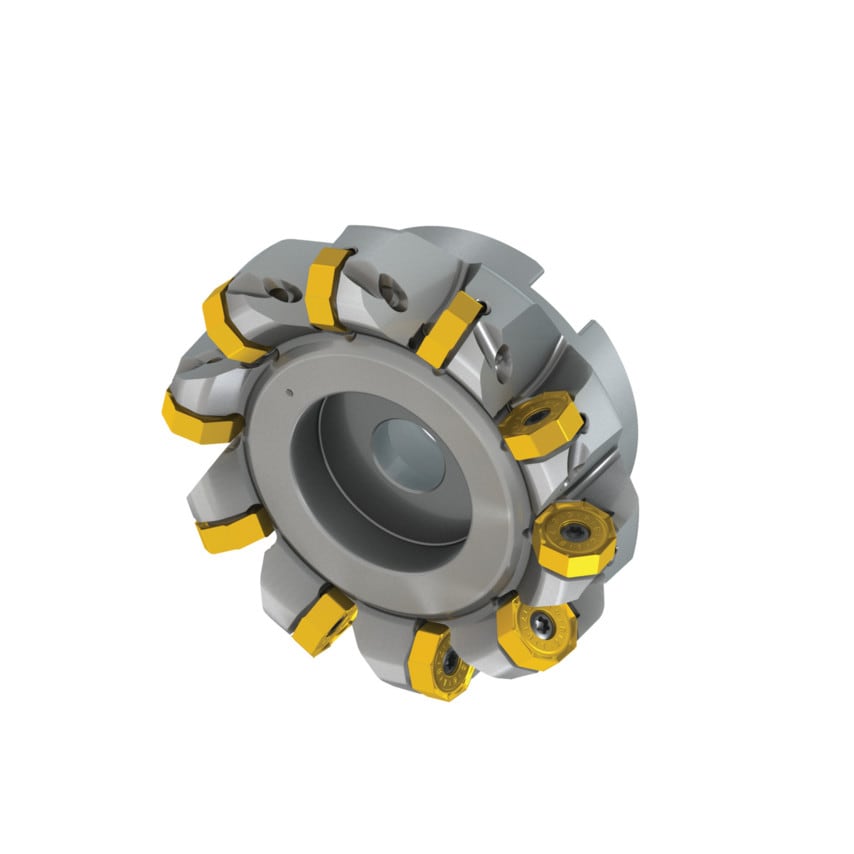

100A10R-S45ON06-C Econ ON06 43 Face Mill

Nickelized steel face mill with double negative geometry utilising 8 milling inserts allowing for depth passes and high feed per tooth. Cutting diameter ranges from 100mm to 110.8mm with a 43 approach angle and a 32mm connection bore. 50mm functional and, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of ON.. 4mm, SN.. 7mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Strong clamping screw improves stability Typical Applications Hardened Metals Cast Iron Stainless Steel Steel High-temperature alloys

Height	50mm
Insert Size	605
Number of Inserts	10
Insert Shape	Octagon
Coolant Delivery	Coolant Through
Toolholder Material	Steel
MFR Part No.	8347589
Toolholder Style	Face Mill
Milling Application	Facing | Helical Interpolation | Plunging | Ramping
ISO Designation	100A10R-S45ON06-C
Cutting Edge Angle	43\u00b0
Maximum Cutting Diameter	110.8mm
