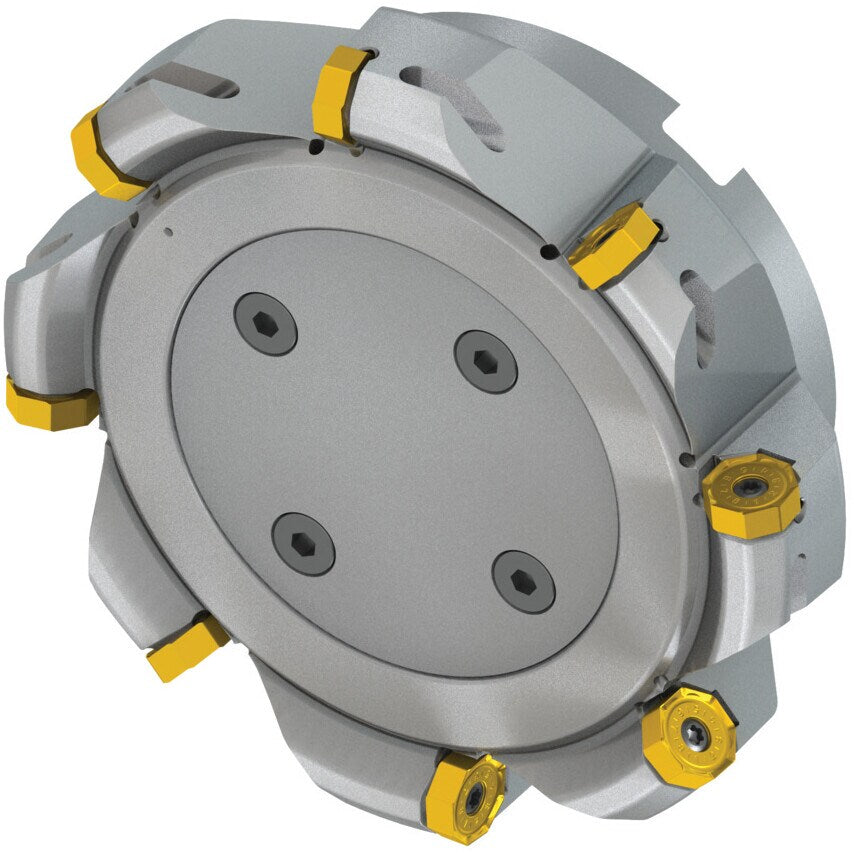

160C08R-S45ON06-C Econ ON06 43 Face Mill

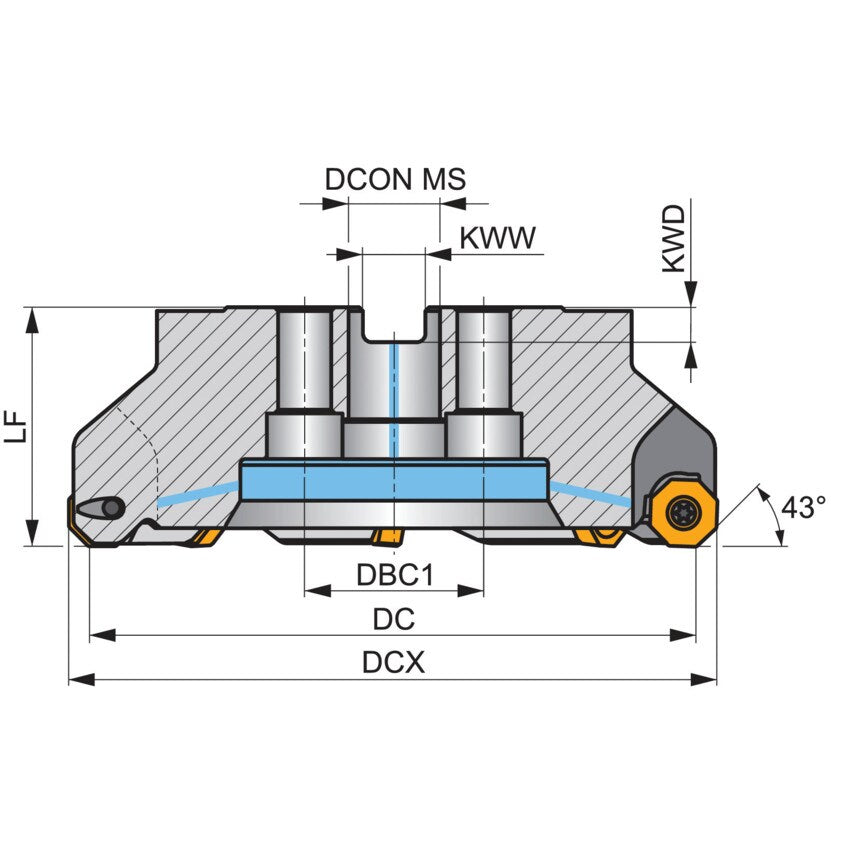

Nickelized steel face mill with double negative geometry utilising 8 double-sided inserts. Cutting diameter ranges from 160mm to 170.8mm with a 43 approach angle and a 40mm connection bore according to DIN 8030-C. 63mm functional and, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of ON.. 4mm, SN.. 7mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Typical Applications Hardened Metals Cast Iron Stainless Steel Steel Cast Steel High-temperature alloys

Maximum Cutting Diameter	170.8mm
Toolholder Style	Face Mill
MFR Part No.	8347766
Insert Size	605
Height	63mm
Toolholder Material	Steel
Milling Application	Facing | Helical Interpolation | Plunging | Ramping
Insert Shape	Octagon
Number of Inserts	8
ISO Designation	160C08R-S45ON06-C
Coolant Delivery	Coolant Through
Cutting Edge Angle	43\u00b0
