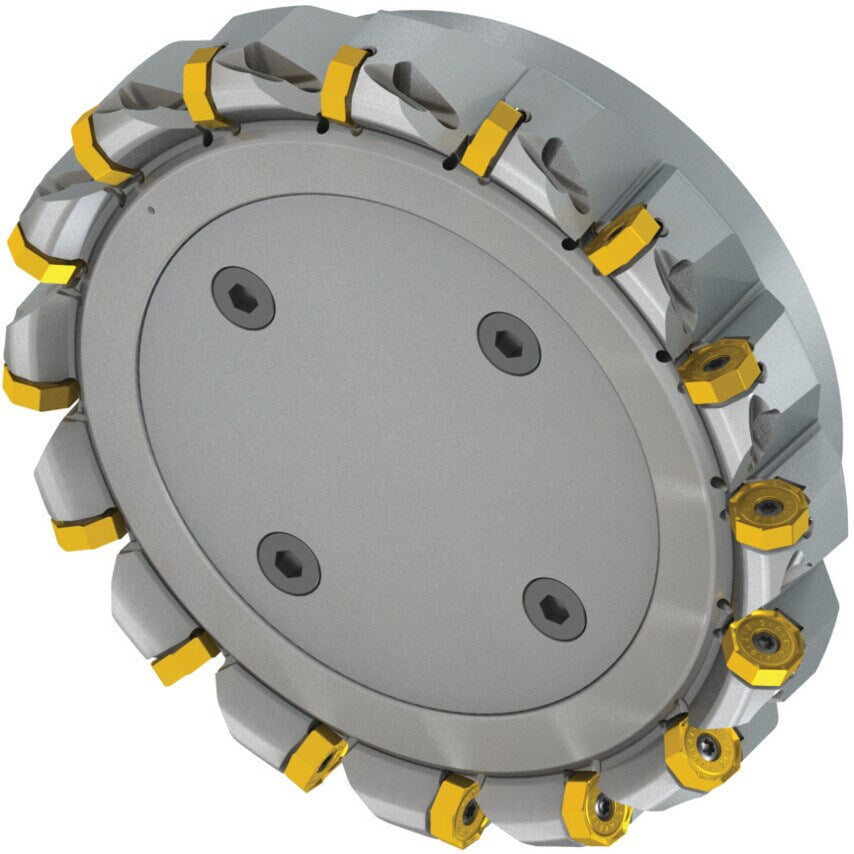

200C16R-S45ON06-C Econ ON06 43 Face Mill

Nickelized steel face mill with double negative geometry utilising 16 double-sided inserts. Cutting diameter ranges from 200mm to 212.8mm with a 45 approach angle and a 60mm connection bore according to DIN 8030-C. 63mm functional and, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 6.4mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Easily accessible large clamping screws for easy handling of inserts Typical Applications Hardened Metals Cast Iron Stainless Steel Steel Cast Steel High-temperature alloys

Number of Inserts	16
Toolholder Style	Face Mill
Insert Shape	Octagon
MFR Part No.	8347790
Milling Application	Facing | Helical Interpolation | Plunging | Ramping
Coolant Delivery	Coolant Through
Height	63mm
Insert Size	605
Toolholder Material	Steel
ISO Designation	200C16R-S45ON06-C
Maximum Cutting Diameter	210.8mm
Cutting Edge Angle	43\u00b0
