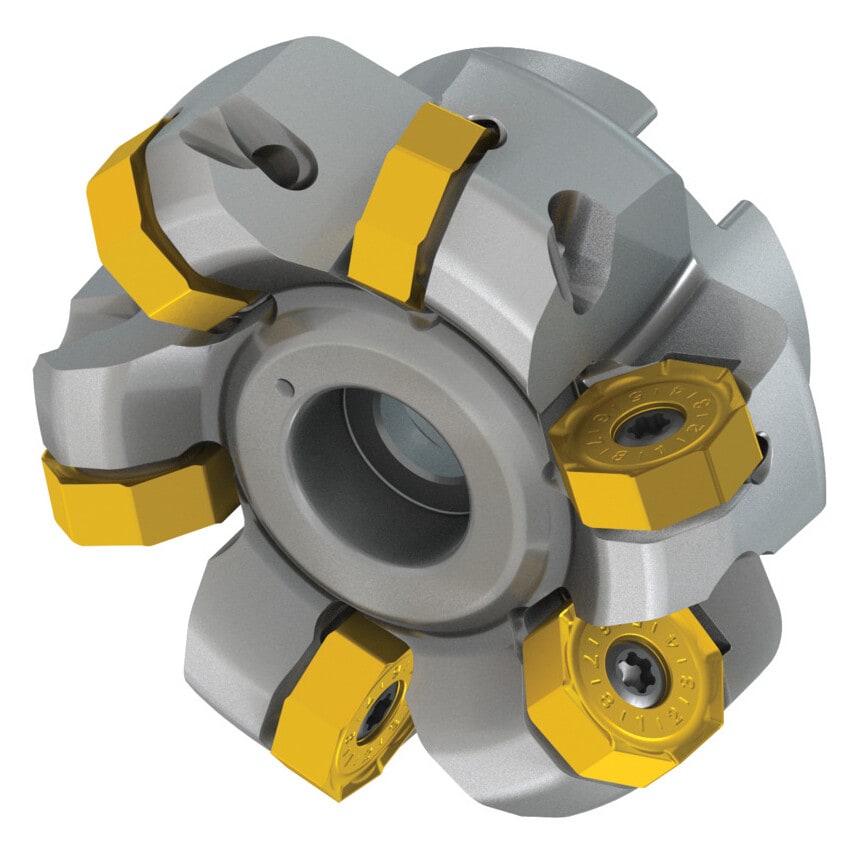

63A06R-S45ON06-C Econ ON06 43 Face Mill

Nickelized steel face mill with double negative geometry utilising 6 double-sided inserts. Cutting diameter ranges from 63mm to 73.8mm with a 43 approach angle and a 22mm connection bore according to DIN 8030-A. 40mm functional and, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of ON.. 4mm, SN.. 7mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Easily accessible clamping screws for easy handling of inserts Typical Applications Hardened Metals Cast Iron Stainless Steel Steel Cast Steel High-temperature alloys

Number of Inserts	6
Insert Shape	Octagon
Insert Size	605
Maximum Cutting Diameter	73.8mm
Toolholder Style	Face Mill
MFR Part No.	8347580
Height	40mm
Cutting Edge Angle	43\u00b0
ISO Designation	63A06R-S45ON06-C
Coolant Delivery	Coolant Through
Milling Application	Facing | Helical Interpolation | Plunging | Ramping
Toolholder Material	Steel
