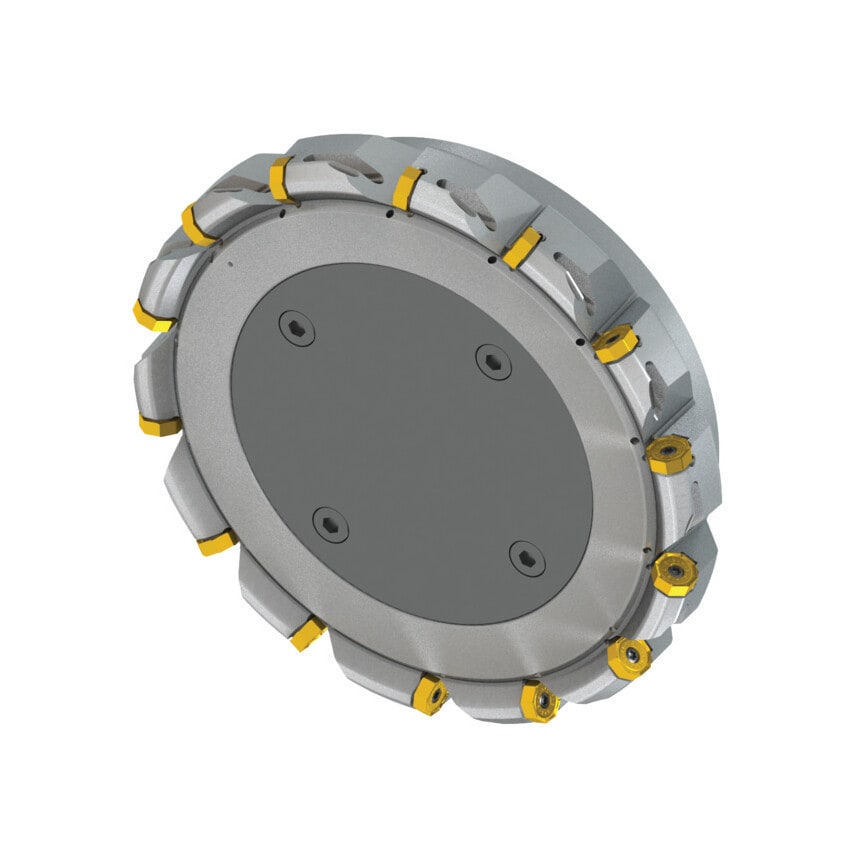

250C14R-S45ON06-C Econ ON06 43 Face Mill

Nickelized steel face mill with double negative geometry utilising 14 double-sided inserts. Cutting diameter ranges from 250mm to 260.8mm with a 43 approach angle and a 60mm connection bore according to DIN 8030-C. 63mm functional and, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of ON.. 4mm, SN.. 7mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Easily accessible large clamping screws for easy handling of inserts Typical Applications Hardened Metals Cast Iron Stainless Steel Steel Cast Steel High-temperature alloys

Cutting Edge Angle	43\u00b0
Toolholder Material	Steel
Milling Application	Facing | Helical Interpolation | Plunging | Ramping
Number of Inserts	14
Insert Size	605
Insert Shape	Octagon
Toolholder Style	Face Mill
Maximum Cutting Diameter	260.8mm
Coolant Delivery	Coolant Through
MFR Part No.	8347791
ISO Designation	250C14R-S45ON06-C
Height	63mm
