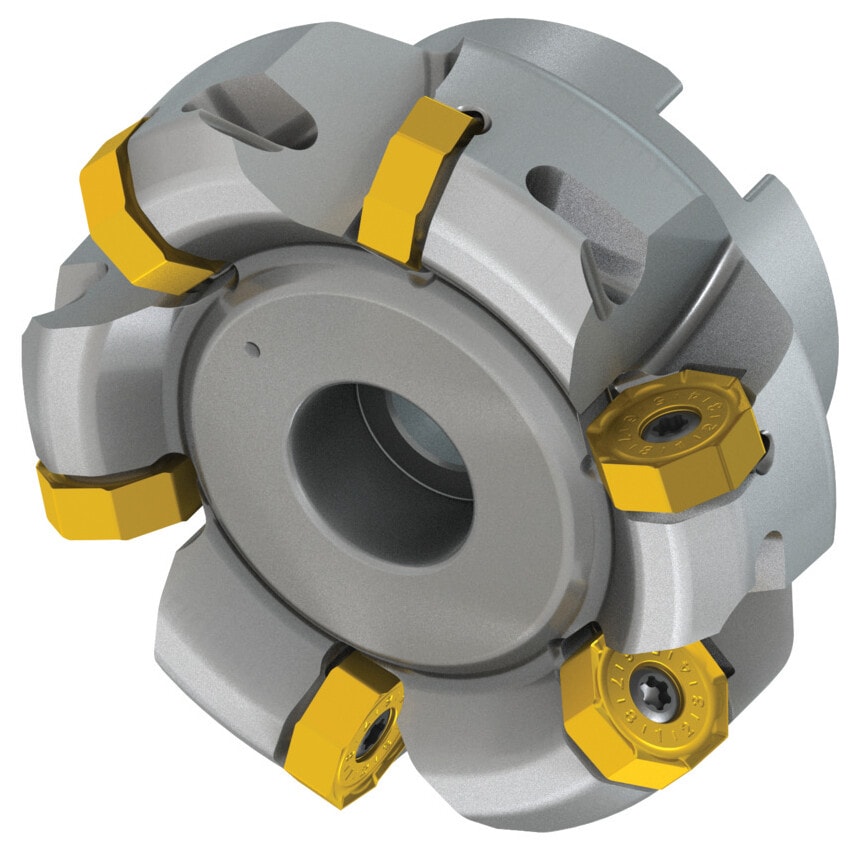

80A06R-S45ON06-C Econ ON06 43 Face Mill

Nickelized steel face mill with double negative geometry utilising 6 double sided inserts. Cutting diameter ranges from 80mm to 90.8mm with a 43 approach angle and a 27mm connection bore according to DIN 8030-A. 50mm functional and, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of ON.. 4mm, SN.. 7mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Easily accessible large clamping screws for easy handling of inserts Typical Applications Hardened Metals Cast Iron Stainless Steel Steel Cast Steel High-temperature alloys

ISO Designation	80A06R-S45ON06-C
Maximum Cutting Diameter	90.8mm
Cutting Edge Angle	43\u00b0
Height	50mm
Toolholder Style	Face Mill
MFR Part No.	8347581
Coolant Delivery	Coolant Through
Insert Shape	Octagon
Insert Size	605
Toolholder Material	Steel
Number of Inserts	6
Milling Application	Facing | Helical Interpolation | Plunging | Ramping
