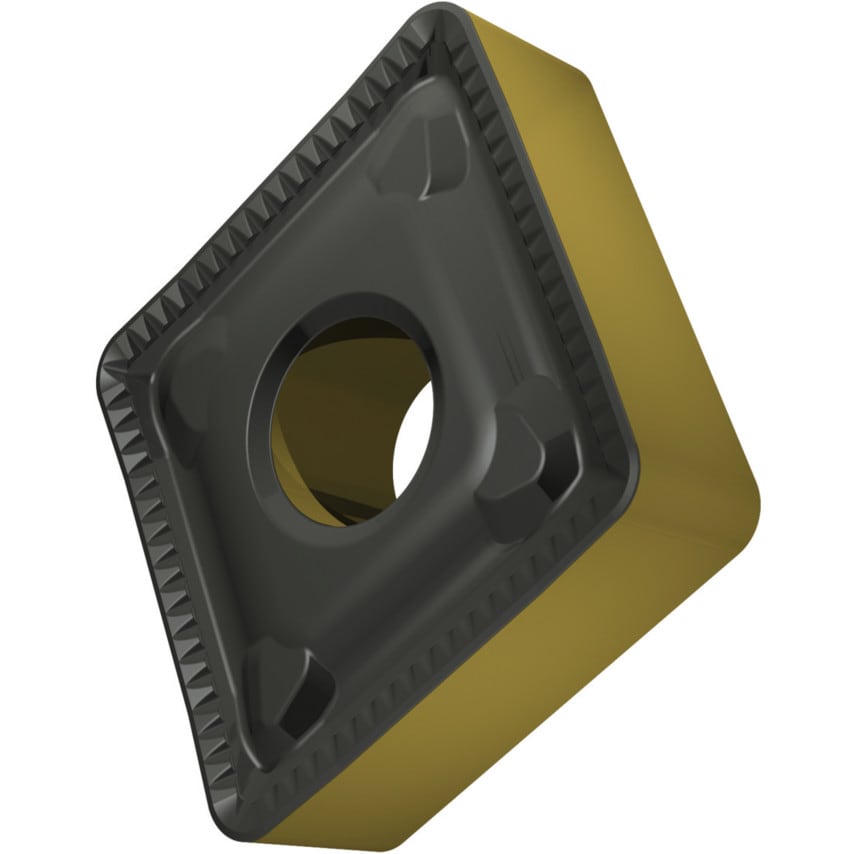

These double-sided 80 rhomboid CNMM turning inserts have a negative insert geometry and were designed for the medium to extra heavy machining of steels. The inscribed circle has a diameter of 25.4mm, 9.52mm thickness, and a 2.4mm nose radius
Features and Benefits
T9415 is the most advanced MT-CVD coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Typical Applications
Steel
Cast Steel
| Inscribed Circle | 25.4mm |
| Insert Size | 25 |
| Cutting Edge Length | 25.8mm |
| Chipbreaker | HR |
| MFR Part No. | 8244262 |
| Thickness | 9.53mm |
| Material Application | Steels |
| Corner Radius | 2.4mm |
| Shape | 80\u00b0 Rhombic |
| ISO Designation | CNMM250924E-HR |
| Finish/Coating | MT-CVD |
| Material | Carbide |
