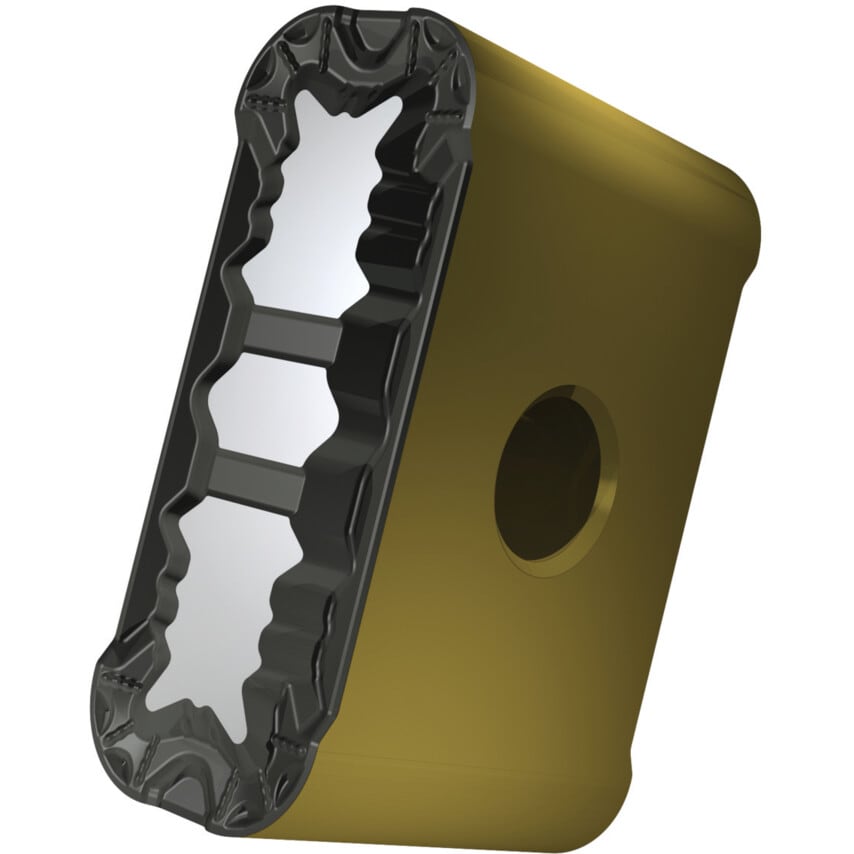

LNMX 301940SN-RF T9415 Heavy Duty Railway Insert

LNMX is a single-sided negative rectangular barpeeling insert with a length of 30.0mm, thickness of 19.05mm and a 4.0mm depth of cut. This milling insert was designed for the machining of steel and features MT-CVD coated, functionally graded WC-Co carbide. Features and Benefits T9415 grade is the most advanced MT-CVD coated turning grade, bringing greater stability and performance in a variety of cutting conditions Stable clamping and strong cutting-edge ideal for square shoulder milling, PVD coating provides long tool life and excellent breakage resistance, while also reducing chatter Processed post-treatment to improve the toughness and reliability of cutting edge Typical Applications Steel Cast Steel

Shape	Rectangle
MFR Part No.	8366638
Corner Radius	4mm
ISO Designation	LNMX 301940SN-RF
Thickness	19.05mm
Cutting Edge Length	30mm
Chipbreaker	RF
Insert Style	LN.X 19
