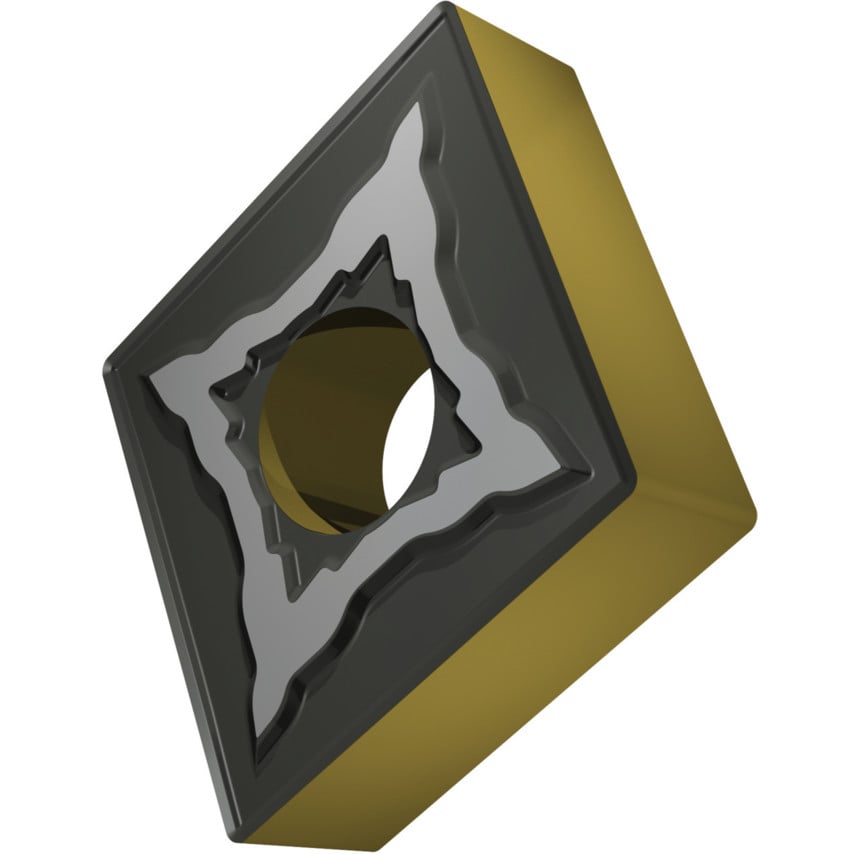

CNMG 120404E-NMR T9415 Turning Insert - Negative

These double-sided 80 rhomboid CNMG turning inserts have a negative insert geometry and were designed for the fine to heavy machining of steels. The inscribed circle has a diameter of 12.7mm, 4.76mm thickness, and 0.4mm nose radius. Features and Benefits T9415 is the most advanced MT-CVD coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Typical Applications Steel Cast Steel

ISO Designation	CNMG120404E-NMR
Shape	80\u00b0 Rhombic
Material	Carbide
Inscribed Circle	12.7mm
MFR Part No.	8345511
Finish/Coating	MT-CVD
Cutting Edge Length	12.9mm
Chipbreaker	NMR
Material Application	Steels
Insert Size	12
Thickness	4.76mm
Corner Radius	0.4mm
