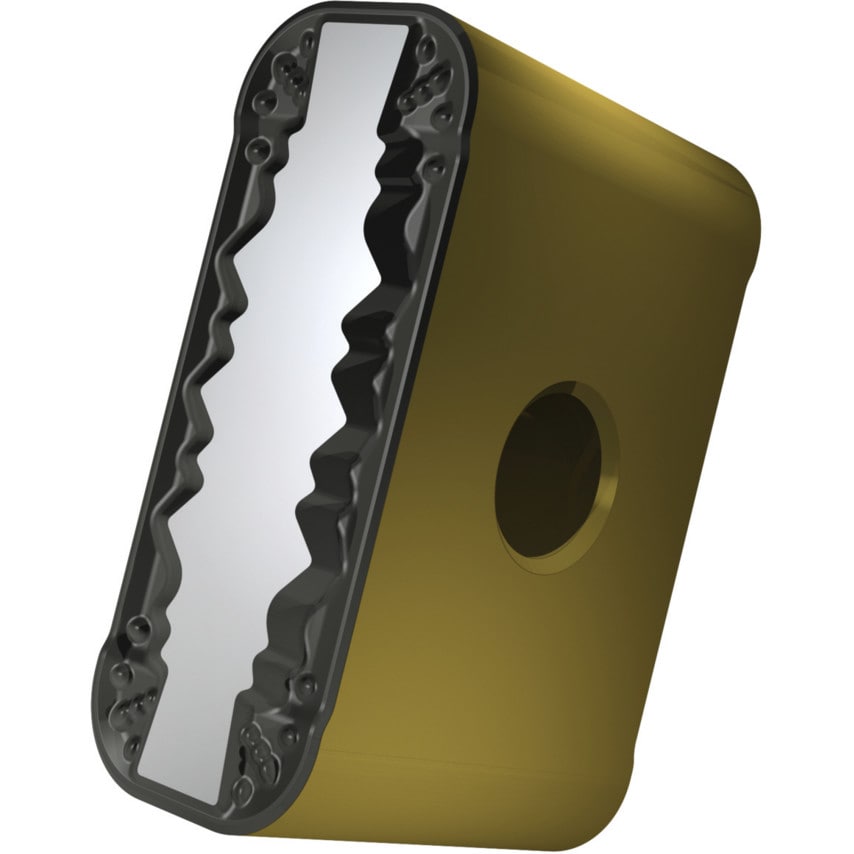

LNMX 301940SN-RM T9415 Heavy Duty Railway Insert

LNMX is a single-sided negative rectangular barpeeling insert with a length of 30.0mm, thickness of 19.05mm and a 4.0mm depth of cut. This milling insert was designed for the machining of steel and features MT-CVD coated, functionally graded WC-Co carbide. Features and Benefits T9415 grade is the most advanced MT-CVD coated turning grade, bringing greater stability and performance in a variety of cutting conditions Stable clamping and strong cutting-edge ideal for square shoulder milling, PVD coating provides long tool life and excellent breakage resistance, while also reducing chatter Processed post-treatment to improve the toughness and reliability of cutting edge Typical Applications Steel Cast Steel

Shape	Rectangle
Insert Style	LN.X 19
Chipbreaker	RM
MFR Part No.	8239163
Corner Radius	4mm
ISO Designation	LNMX 301940SN-RM
Cutting Edge Length	30mm
Thickness	19.05mm
