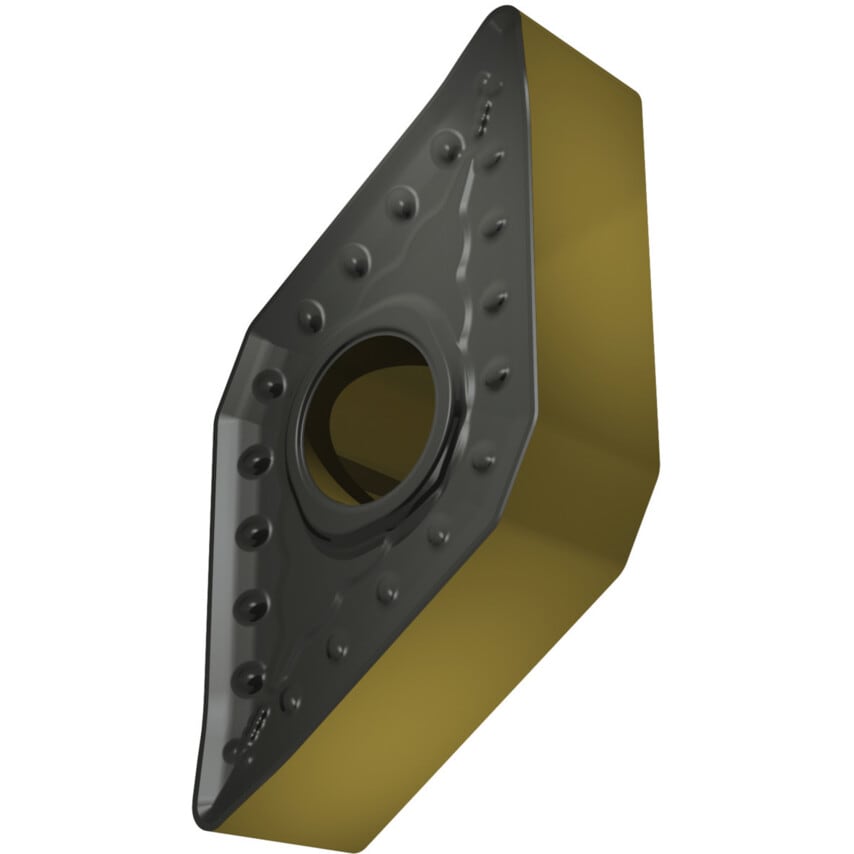

This double-sided 55 rhomboid DNMM turning insert has a positive insert geometry and was designed for the medium to extra heavy machining of steels. The inscribed circle has a diameter of 12.7mm, 6.35mm thickness, and a 1.2mm nose radius.
Features and Benefits
The insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Typical Applications
Steel
Cast Steel

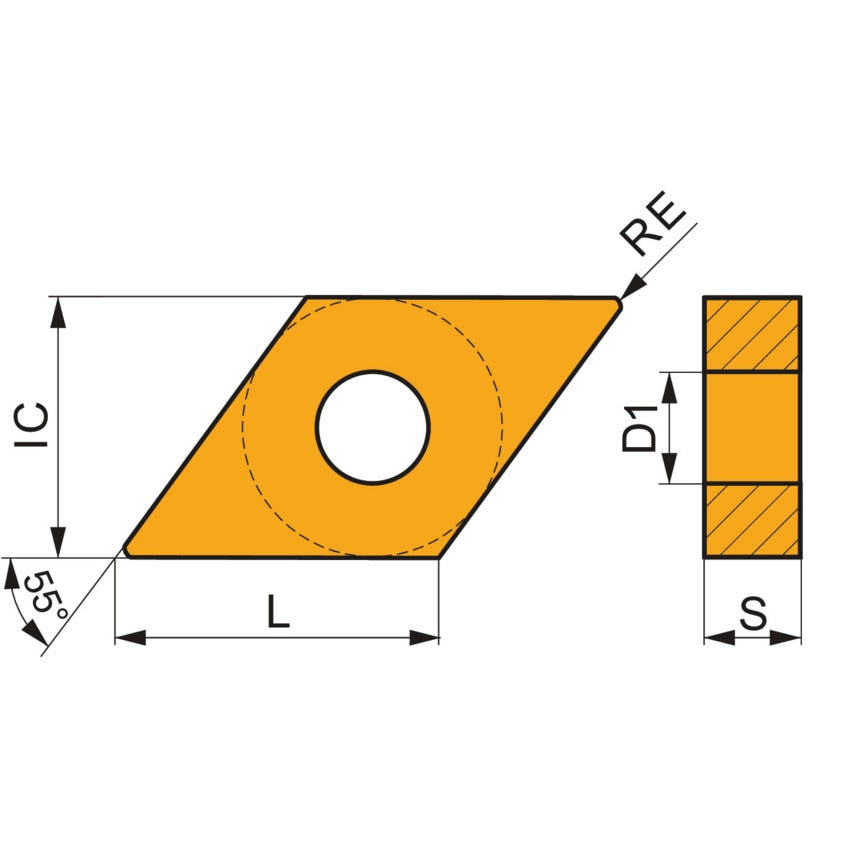

| Corner Radius | 1.2mm |
| ISO Designation | DNMM150612E-OR |
| Chipbreaker | OR |
| Material | Carbide |
| Shape | 55\u00b0 Rhombic |
| Cutting Edge Length | 15.5mm |
| Insert Size | 15 |
| Inscribed Circle | 12.7mm |
| MFR Part No. | 8345563 |
| Thickness | 6.35mm |
| Finish/Coating | MT-CVD |
