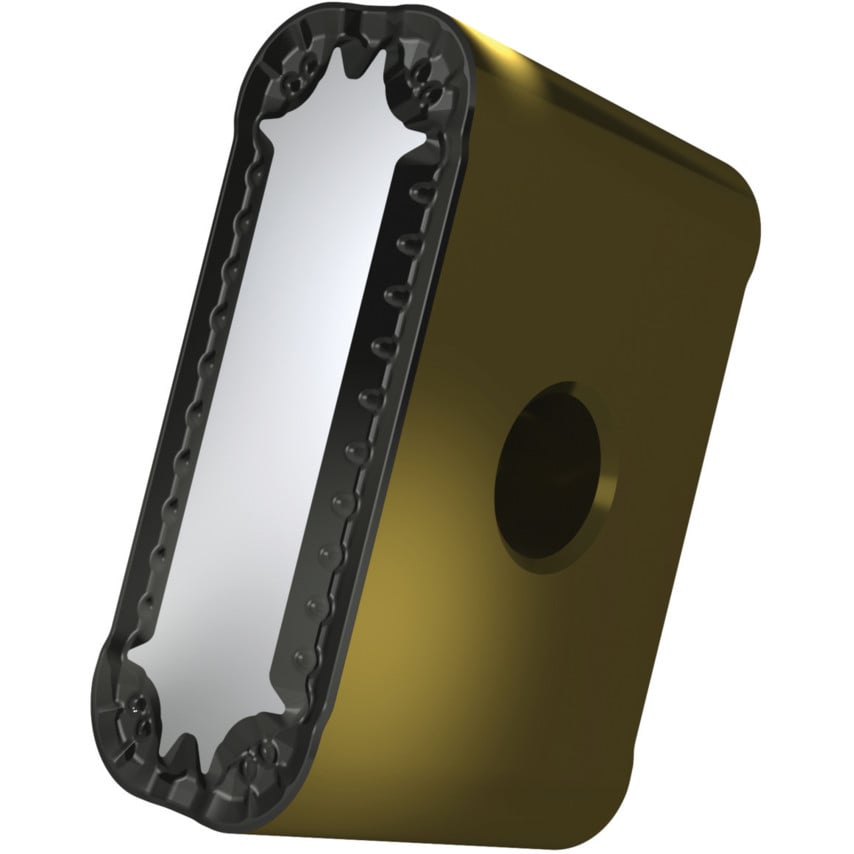

LNMX is a single-sided negative rectangular barpeeling insert with a length of 30.0mm, thickness of 19.05mm and a 4.0mm depth of cut. This milling insert was designed for the machining of steel and features MT-CVD coated, functionally graded WC-Co carbide.
Features and Benefits
T9415 grade is the most advanced MT-CVD coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Stable clamping and strong cutting-edge ideal for square shoulder milling,
PVD coating provides long tool life and excellent breakage resistance, while also reducing chatter
Processed post-treatment to improve the toughness and reliability of cutting edge
Typical Applications
Steel
Cast Steel

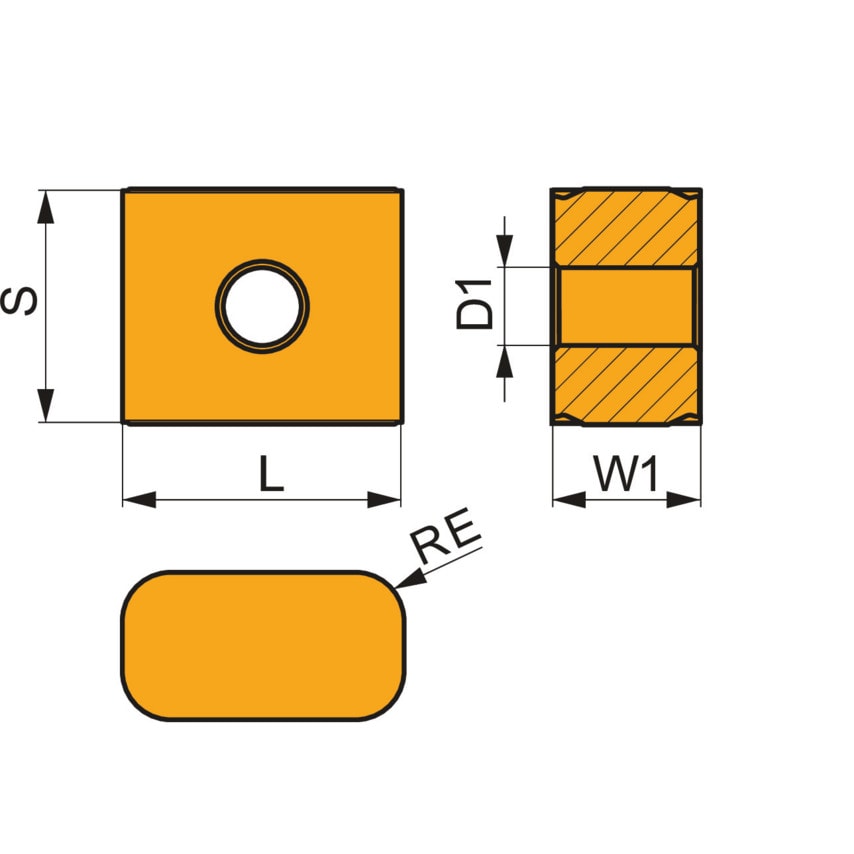

| MFR Part No. | 8183845 |
| Shape | Rectangle |
| Insert Style | LN.X 19 |
| Corner Radius | 4mm |
| Thickness | 19.05mm |
| Cutting Edge Length | 30mm |
| ISO Designation | LNMX 301940SN-TF |
| Chipbreaker | TF |
