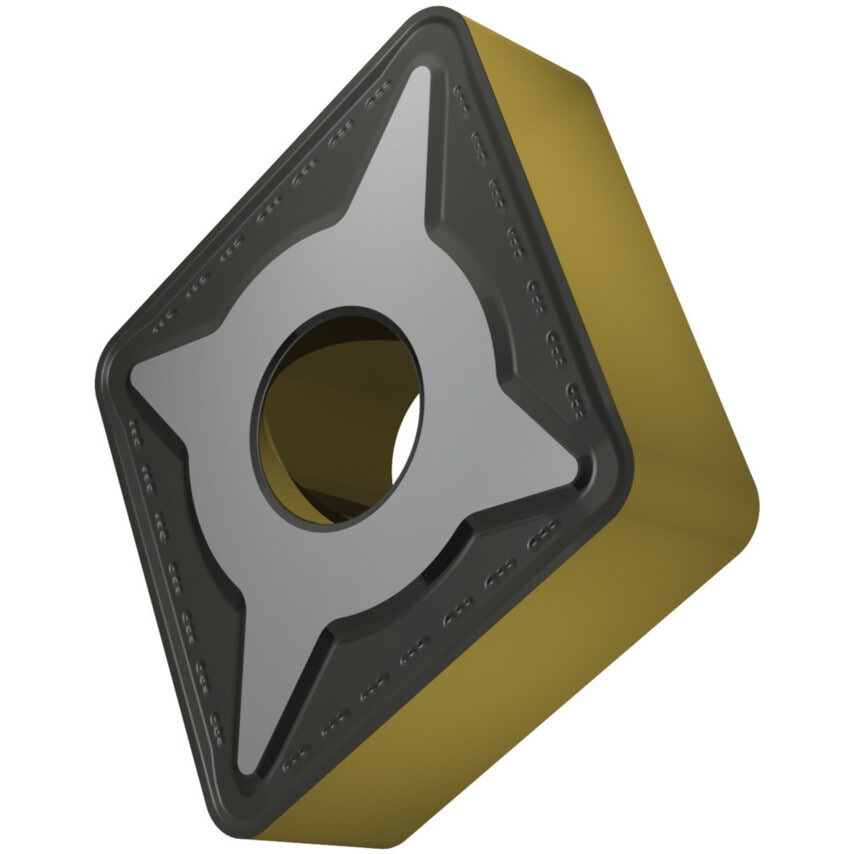

This double-sided 80 rhomboid CNMG turning insert has a negative insert geometry and was designed for the medium to heavy machining of steels. The inscribed circle has a diameter of 25.4mm, 9.52mm thickness, and 2.4mm nose radius.
Features and Benefits
T9415 is the most advanced MT-CVD coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Typical Applications
Steel
Cast Steel
| Finish/Coating | MT-CVD |
| Thickness | 9.53mm |
| Cutting Edge Length | 25.8mm |
| Insert Size | 25 |
| Corner Radius | 2.4mm |
| Material Application | Steels |
| MFR Part No. | 8244258 |
| ISO Designation | CNMG250924E-RM |
| Material | Carbide |
| Shape | 80\u00b0 Rhombic |
| Chipbreaker | RM |
| Inscribed Circle | 25.4mm |
