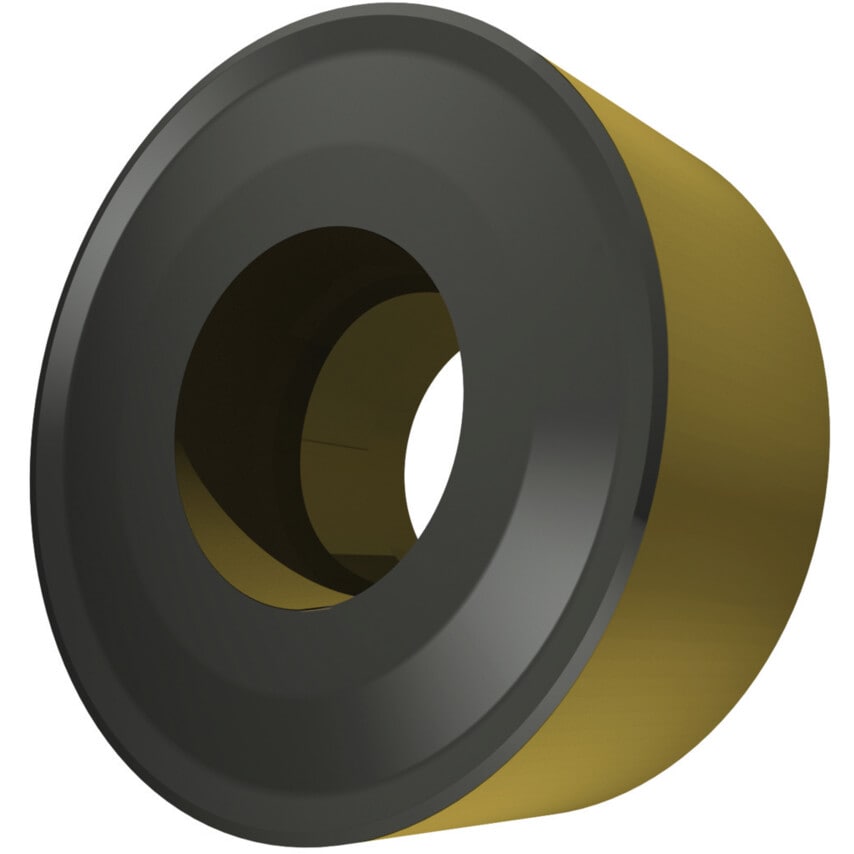

RCMX 1204MOS-321 T9415 Turning Insert - Negative

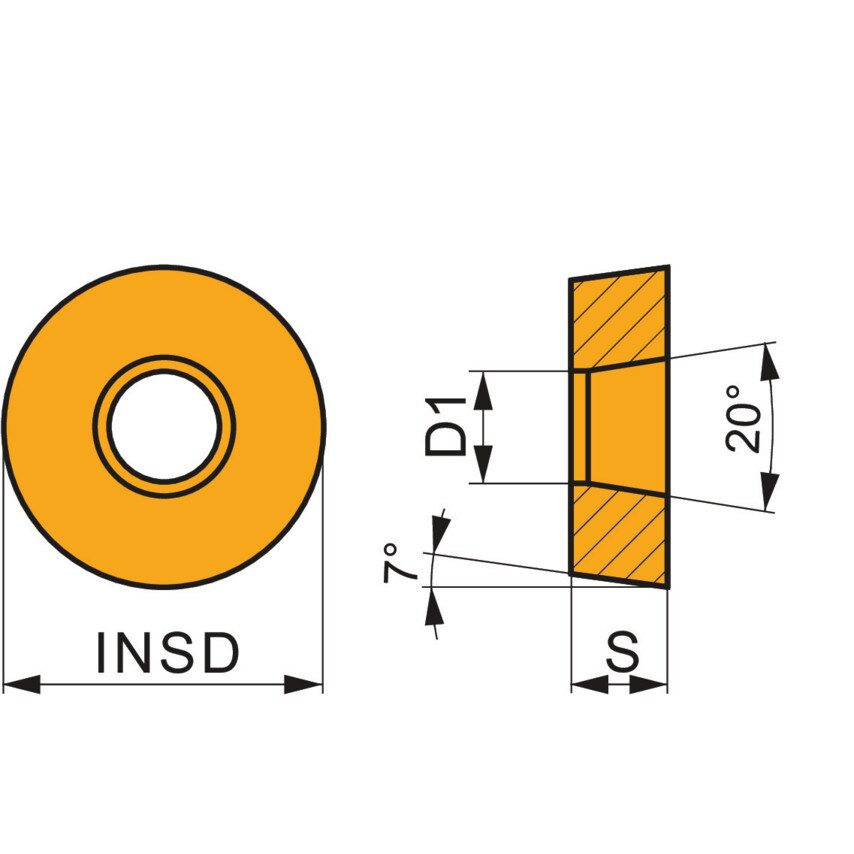

This round RCMX turning insert has a 7 clearance, negative insert geometry and was designed for the medium to heavy machining of steels. The insert has a diameter of 12.0mm and a thickness of 4.76mm. Features and Benefits The insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Processed post-treatment to improve toughness and reliability of cutting edge Typical Applications Steel Cast Steel

Chipbreaker	321
Clearance Angle	7\u00b0
Insert Style	RCMX
Insert Size	1204
Finish/Coating	MT-CVD
Thickness	4.76mm
Material Application	Steels
MFR Part No.	8345955
Material	Carbide
Product Type	Turning Inserts
Insert Thickness	4.76mm
ISO Designation	RCMX1204MOS-321
Shape	Round
