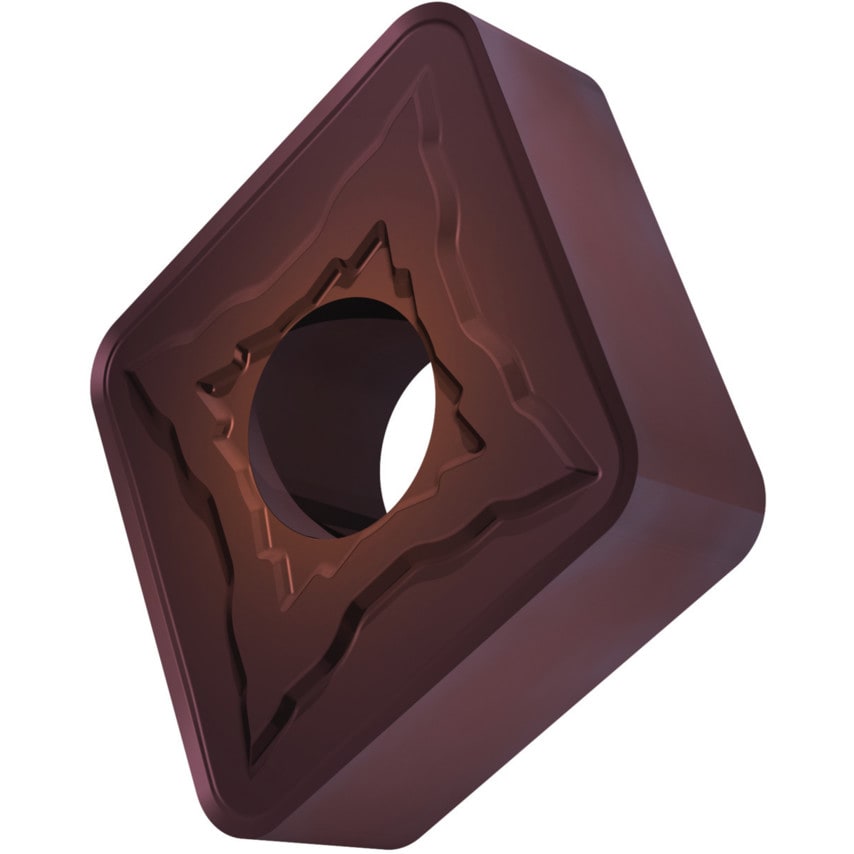

CNMG 120416E-NMR T8430 Turning Insert - Negative

These double-sided 80 rhomboid CNMG turning inserts have a negative insert geometry and were designed for the fine to heavy machining of steels. The inscribed circle has a diameter of 12.7mm, 4.76mm thickness, and 1.6mm nose radius. Features and Benefits T9415 is the most advanced MT-CVD coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Typical Applications Steel Cast Steel

Insert Size	12
MFR Part No.	8342345
Material Application	Steels
ISO Designation	CNMG120416E-NMR
Chipbreaker	NMR
Thickness	4.76mm
Cutting Edge Length	12.9mm
Inscribed Circle	12.7mm
Finish/Coating	PVD
Shape	80\u00b0 Rhombic
Material	Carbide
Corner Radius	1.6mm
