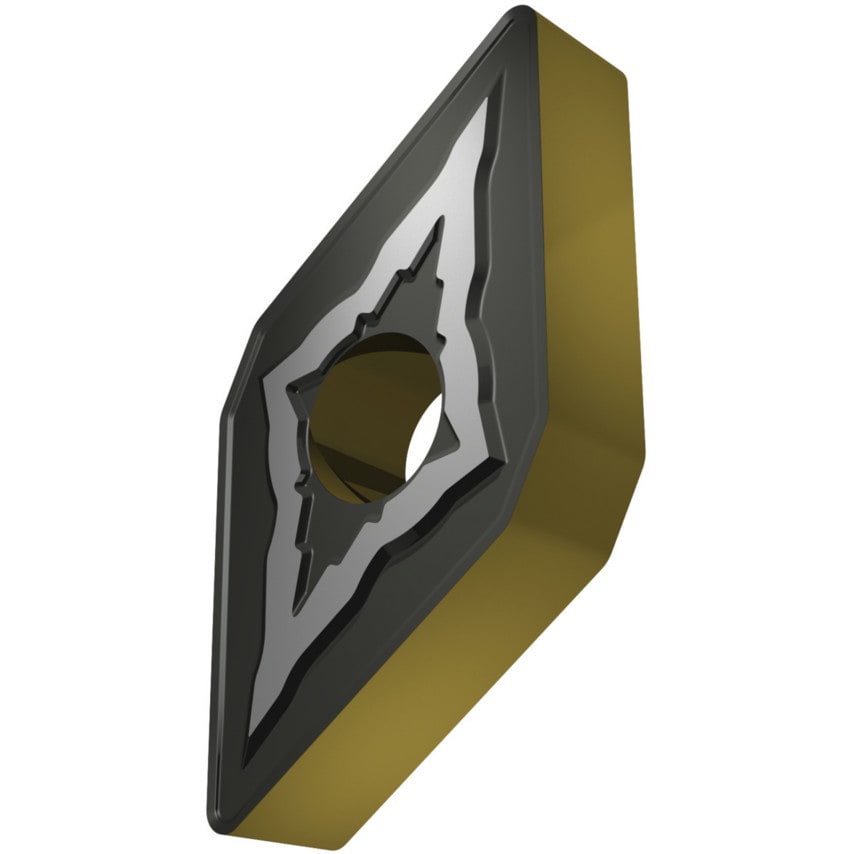

DNMG 150408E-NMR T9415 Turning Insert - Negative

These double-sided 55 rhomboid DCMT turning inserts have a positive insert geometry and were designed for the fine to heavy machining of steels. The inscribed circle has a diameter of 12.7mm, 4.76mm thickness, and a 0.8mm nose radius. Features and Benefits The insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Typical Applications Steel Cast Steel

MFR Part No.	8345551
Finish/Coating	MT-CVD
Inscribed Circle	12.7mm
ISO Designation	DNMG150408E-NMR
Corner Radius	0.8mm
Insert Size	15
Chipbreaker	NMR
Cutting Edge Length	15.5mm
Shape	55\u00b0 Rhombic
Thickness	4.76mm
Material	Carbide
