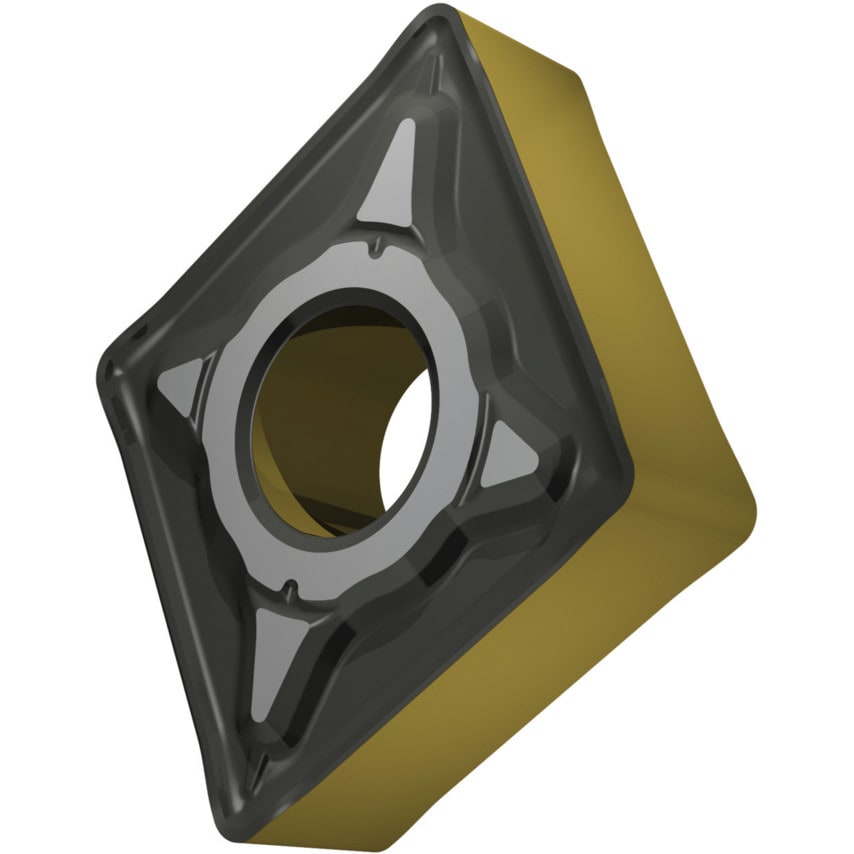

CNMG 120408-NRM T9415 Turning Insert - Negative

These double-sided 80 rhomboid CNMG turning inserts have a negative insert geometry and were designed for the fine to heavy machining of steels. The inscribed circle has a diameter of 12.7mm, 4.76mm thickness, and 0.8mm nose radius. Features and Benefits T9415 is the most advanced MT-CVD coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Typical Applications Steel Cast Steel

Insert Size	12
Cutting Edge Length	12.9mm
Shape	80\u00b0 Rhombic
Corner Radius	0.8mm
Material	Carbide
Inscribed Circle	12.7mm
MFR Part No.	8345514
ISO Designation	CNMG120408-NRM
Finish/Coating	MT-CVD
Thickness	4.76mm
Chipbreaker	NRM
Material Application	Steels
