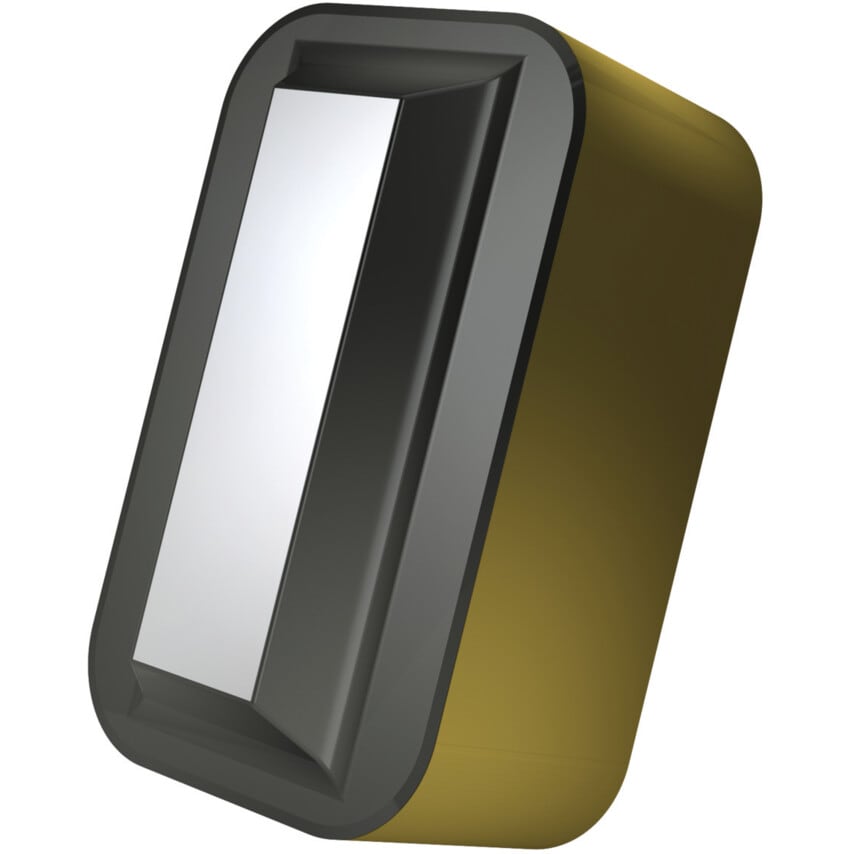

LNMT is a single-sided negative barpeeling insert with a length of 31.0mm, thickness of 12.0mm and a 4.0mm depth of cut. This milling insert was designed for the machining of steel and features MT-CVD coated, functionally graded WC-Co carbide.
Features and Benefits
Stable clamping and strong cutting-edge ideal for square shoulder milling,
PVD coating provides long tool life and excellent breakage resistance, while also reducing chatter
Processed post-treatment to improve toughness and reliability of cutting edge
Typical Applications
Steel
Cast Steel

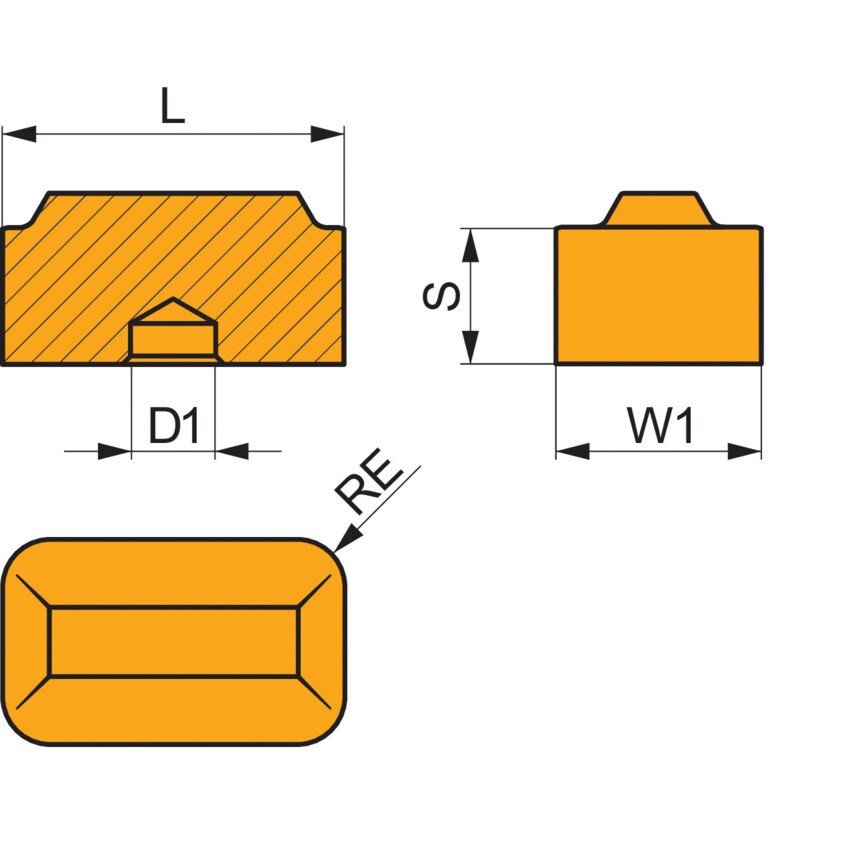

| Thickness | 12.7mm |
| Insert Style | LNMT |
| Shape | Rectangle |
| MFR Part No. | 8366639 |
| Corner Radius | 4.76mm |
| Cutting Edge Length | 31.75mm |
| ISO Designation | LNMT 311240 |
