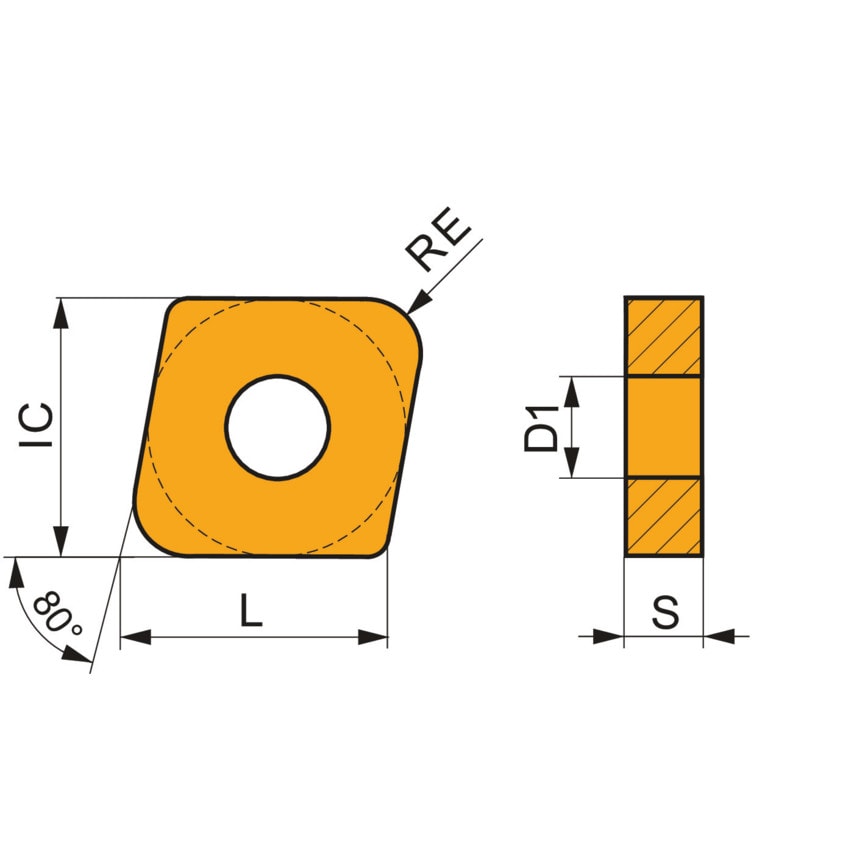

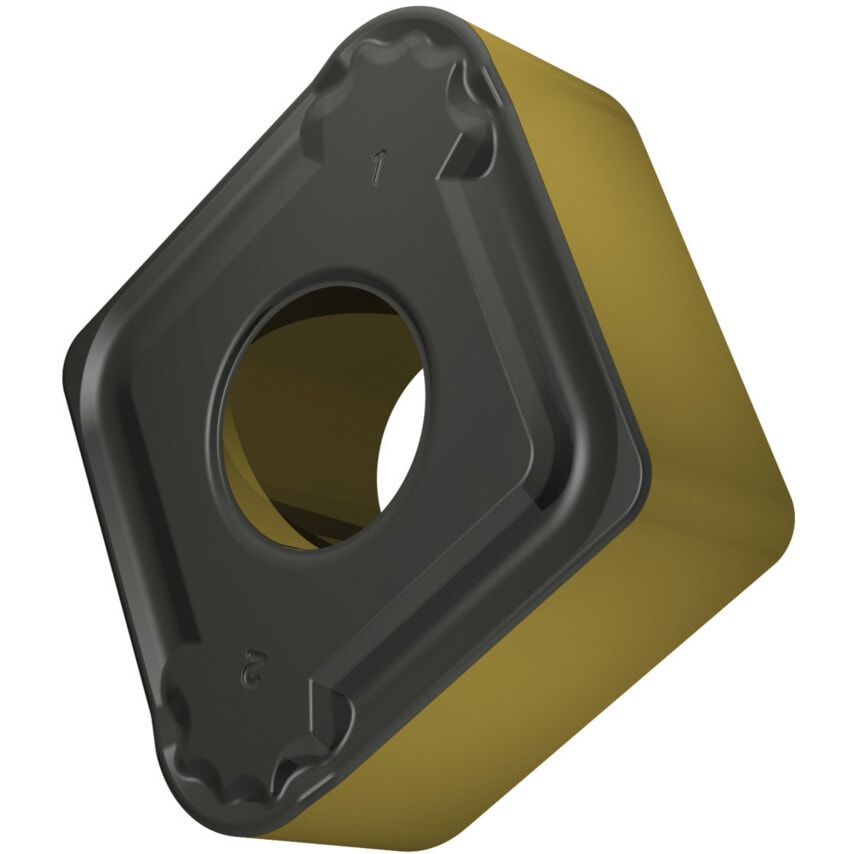

This double-sided 80 rhomboid CNMX turning insert has a negative insert geometry and was designed for the medium to heavy machining of steels. The inscribed circle has a diameter of 19.05mm, 7.94mm thickness, and a 4mm nose radius.
Features and Benefits
T9415 is the most advanced MT-CVD coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Typical Applications
Steel
Cast Steel
| Material Application | Steels |
| Corner Radius | 4mm |
| Cutting Edge Length | 19.3mm |
| Chipbreaker | RF |
| MFR Part No. | 8239161 |
| Finish/Coating | MT-CVD |
| Inscribed Circle | 19.05mm |
| Material | Carbide |
| Thickness | 7.94mm |
| Shape | 80\u00b0 Rhombic |
| ISO Designation | CNMX190740SN-RF |
| Insert Size | 19 |
