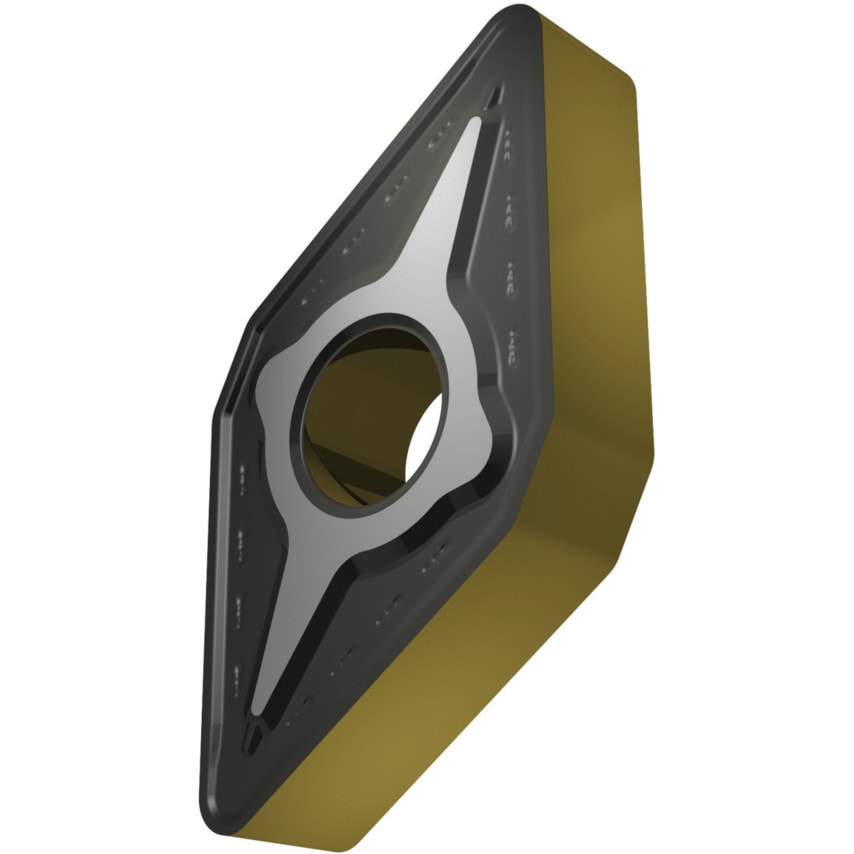

These double-sided 55 rhomboid DNMG turning inserts have a positive insert geometry and were designed for the fine to heavy machining of steels. The inscribed circle has a diameter of 12.7mm, 4.76mm thickness, and a 1.2mm nose radius.
Features and Benefits
The insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Typical Applications
Steel
Cast Steel
| Material | Carbide |
| MFR Part No. | 8244271 |
| Chipbreaker | RM |
| Shape | 55\u00b0 Rhombic |
| Thickness | 4.76mm |
| Cutting Edge Length | 15.5mm |
| Finish/Coating | MT-CVD |
| Insert Size | 15 |
| Corner Radius | 1.2mm |
| ISO Designation | DNMG150412E-RM |
| Inscribed Circle | 12.7mm |
