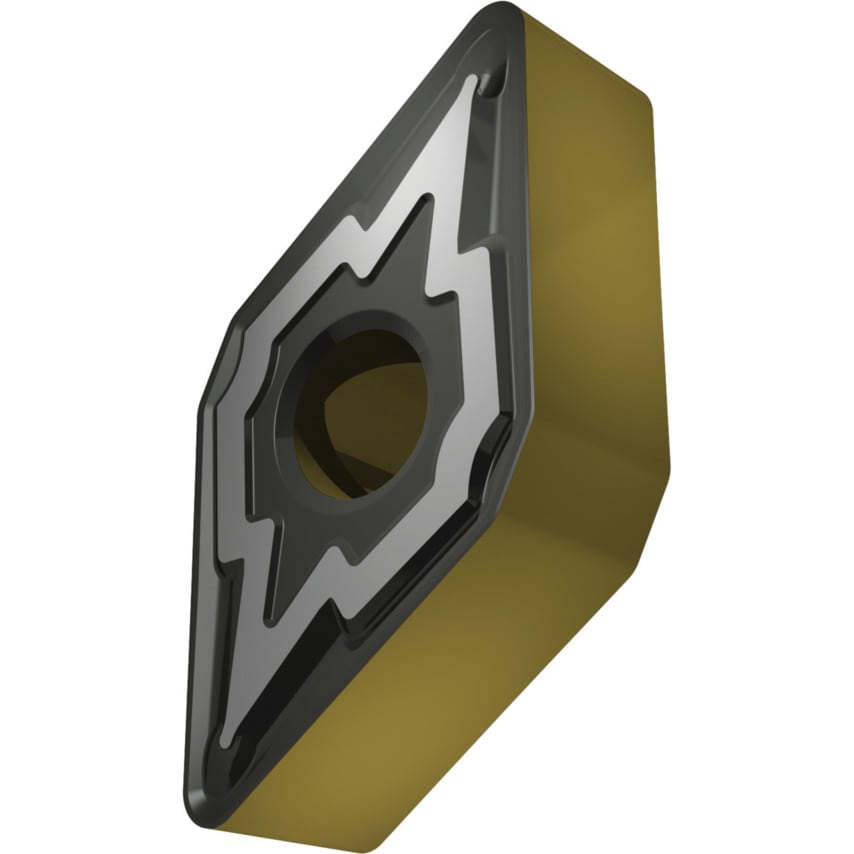

DNMG 150612E-M T9415 Turning Insert - Negative

These double-sided 55 rhomboid DNMG turning inserts have a positive insert geometry and were designed for the fine to heavy machining of steels. The inscribed circle has a diameter of 12.7mm, 6.35mm thickness, and a 1.2mm nose radius. Features and Benefits The insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds and abrasion resistance Typical Applications Steel Cast Steel

Thickness	6.35mm
ISO Designation	DNMG150612E-M
Corner Radius	1.2mm
Inscribed Circle	12.7mm
Finish/Coating	MT-CVD
MFR Part No.	8183398
Chipbreaker	M
Cutting Edge Length	15.5mm
Shape	55\u00b0 Rhombic
Material	Carbide
Insert Size	15
