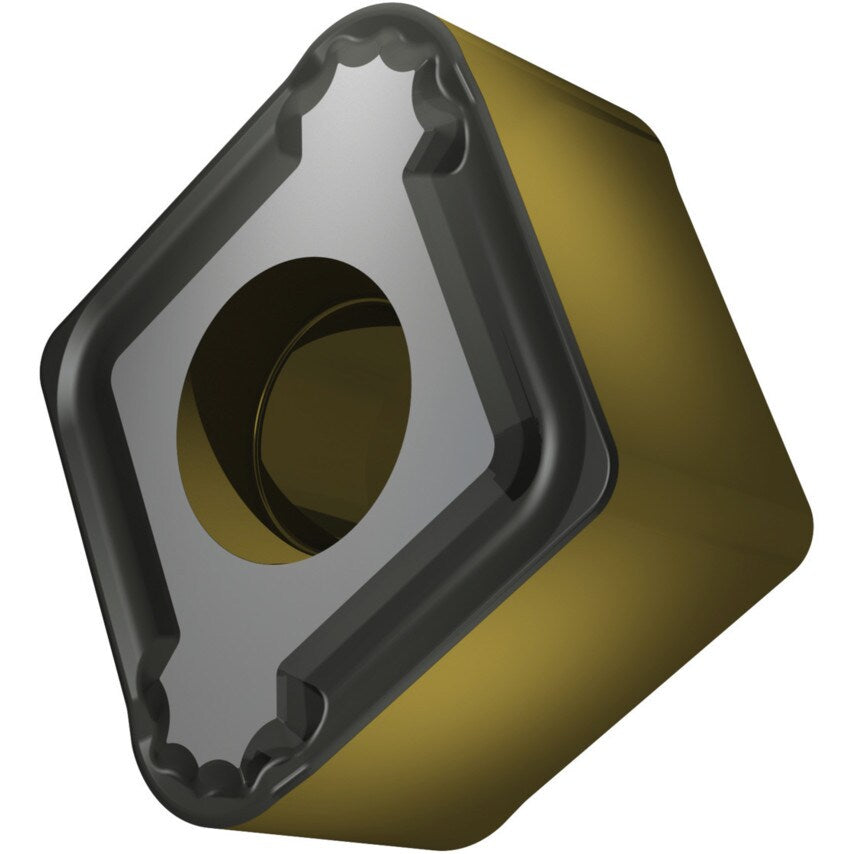

CNMX 191140SN-RF T9415 Heavy Duty Railway Insert

These double-sided 80 rhomboid CNMX turning inserts have a negative insert geometry and were designed for the medium to heavy machining of steels. The inscribed circle has a diameter of 19.05mm, 11mm thickness, and a 4mm nose radius. Features and Benefits T9415 is the most advanced MT-CVD coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Typical Applications Steel Cast Steel

Inscribed Circle	19.05mm
MFR Part No.	8366636
Material Application	Steels
Corner Radius	4mm
Cutting Edge Length	19.3mm
Shape	80\u00b0 Rhombic
Insert Size	19
Thickness	11mm
Chipbreaker	RF
Material	Carbide
Finish/Coating	MT-CVD
ISO Designation	CNMX191140SN-RF
