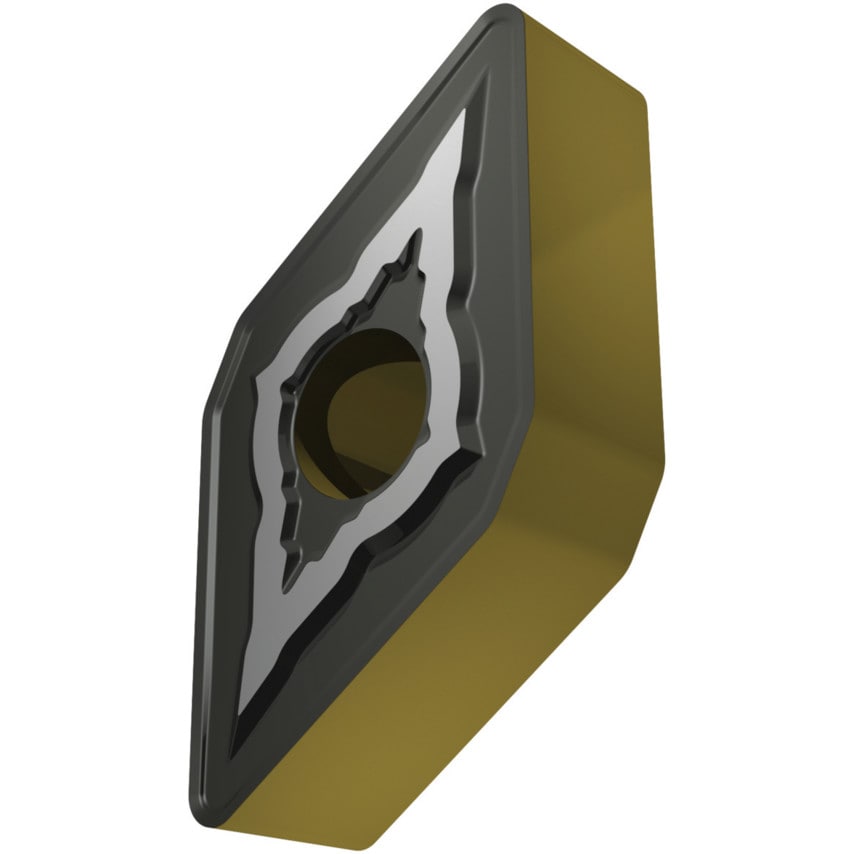

DNMG 110408E-NMR T9415 Turning Insert - Negative

These double-sided 55 rhomboid DCMT turning inserts have a positive insert geometry and were designed for the fine to heavy machining of steels. The inscribed circle has a diameter of 9.525mm, 4.76mm thickness, and a 0.8mm nose radius. Features and Benefits The insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Typical Applications Steel Cast Steel

Cutting Edge Length	11.6mm
Thickness	4.76mm
MFR Part No.	8345546
Insert Size	11
Finish/Coating	MT-CVD
Corner Radius	0.8mm
Inscribed Circle	9.53mm
ISO Designation	DNMG110408E-NMR
Material	Carbide
Shape	55\u00b0 Rhombic
Chipbreaker	NMR
