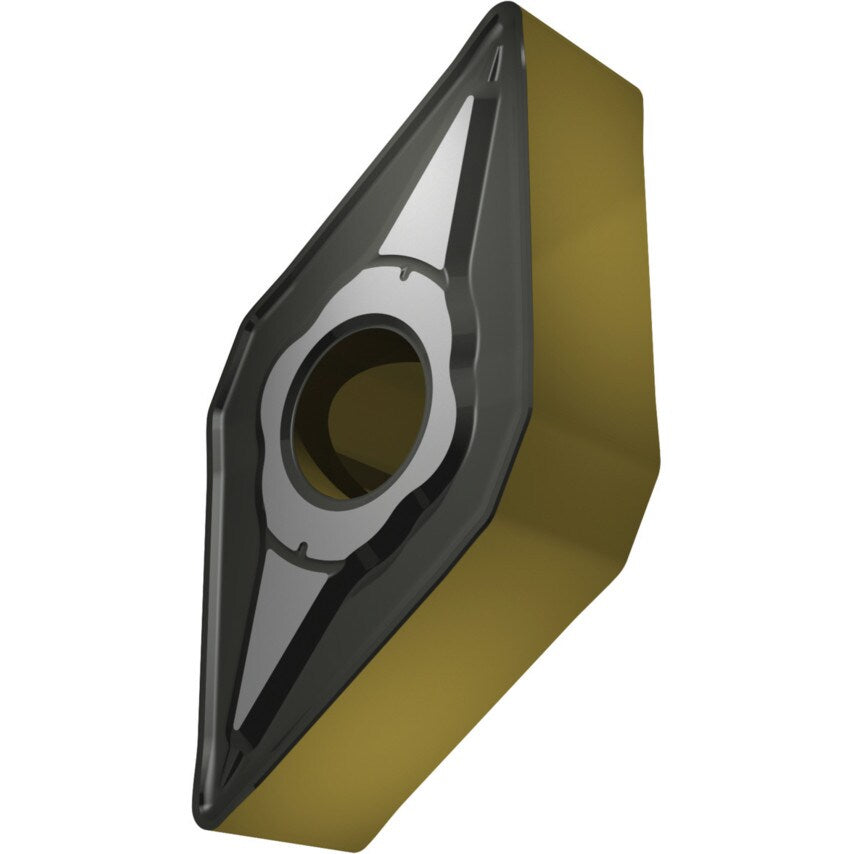

DNMG 150608-NRM T9415 Turning Insert - Negative

These double-sided 55 rhomboid DNMG turning inserts have a positive insert geometry and were designed for the fine to heavy machining of steels. The inscribed circle has a diameter of 12.7mm, 6.35mm thickness, and a 0.8mm nose radius. Features and Benefits The insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds and abrasion resistance Typical Applications Steel Cast Steel

Shape	55\u00b0 Rhombic
MFR Part No.	8345554
ISO Designation	DNMG150608-NRM
Material	Carbide
Inscribed Circle	12.7mm
Cutting Edge Length	15.5mm
Finish/Coating	MT-CVD
Corner Radius	0.8mm
Insert Size	15
Chipbreaker	NRM
Thickness	6.35mm
