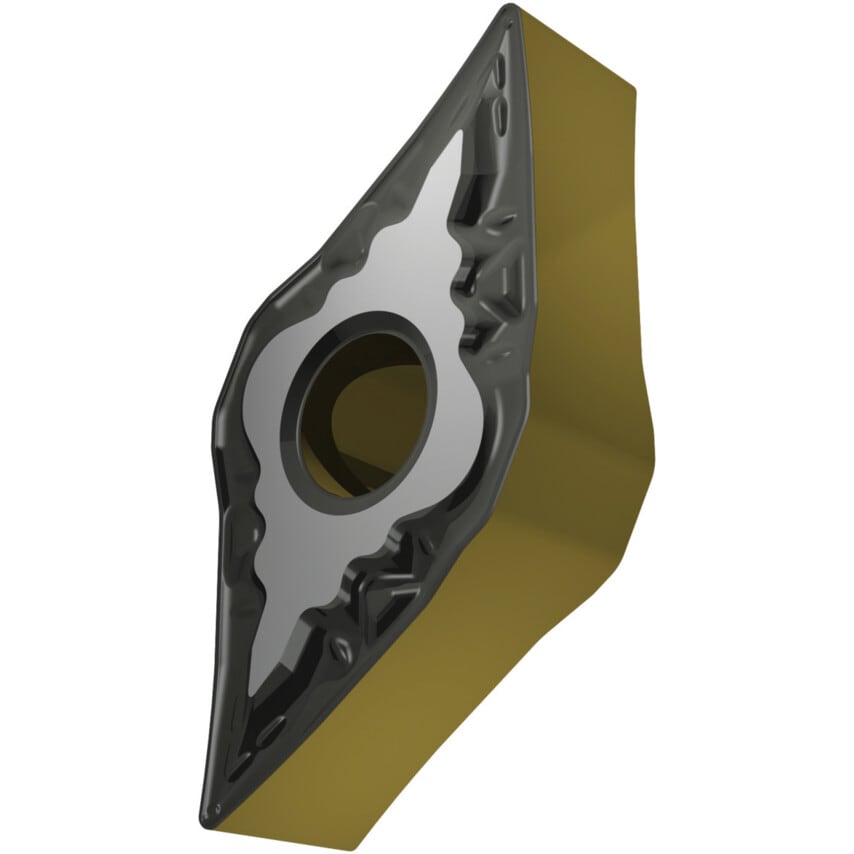

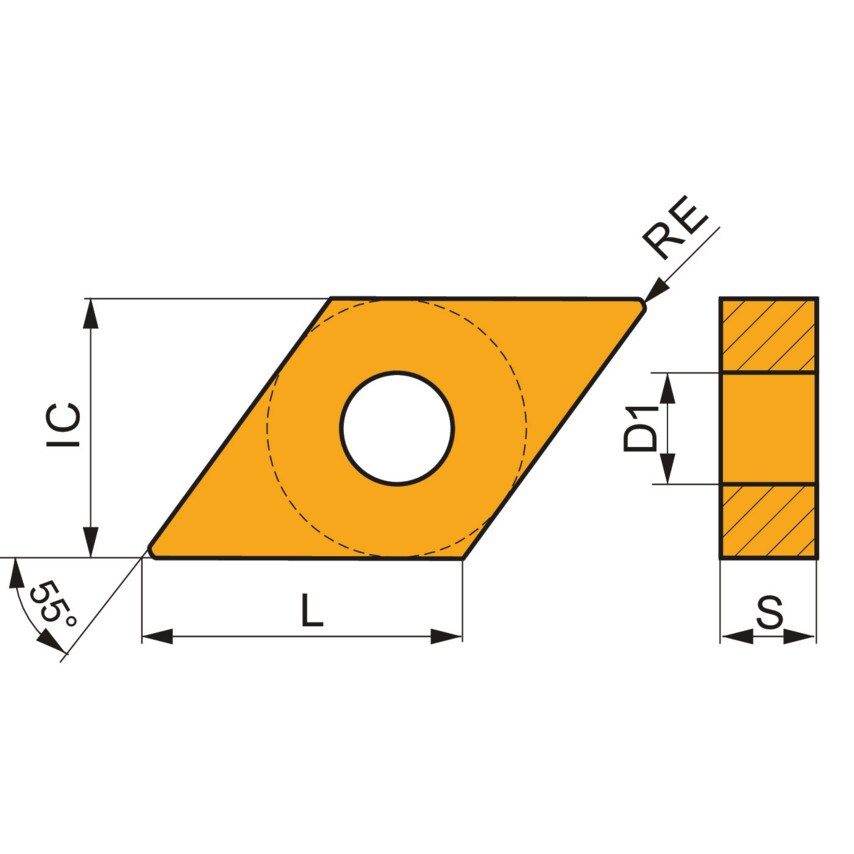

These double-sided 55 rhomboid DCMT turning inserts have a negative insert geometry and were designed for the fine to heavy machining of steels. The inscribed circle has a diameter of 9.525mm, 4.76mm thickness, and a 0.4mm nose radius.
Features and Benefits
T9415 is the most advanced MT-CVD coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Typical Applications
Steel
Cast Steel
| Finish/Coating | MT-CVD |
| Material | Carbide |
| ISO Designation | DNMG110404E-FM |
| Corner Radius | 0.4mm |
| Shape | 55\u00b0 Rhombic |
| Cutting Edge Length | 11.6mm |
| Insert Size | 11 |
| Thickness | 4.76mm |
| Inscribed Circle | 9.53mm |
| MFR Part No. | 8244263 |
| Chipbreaker | FM |
