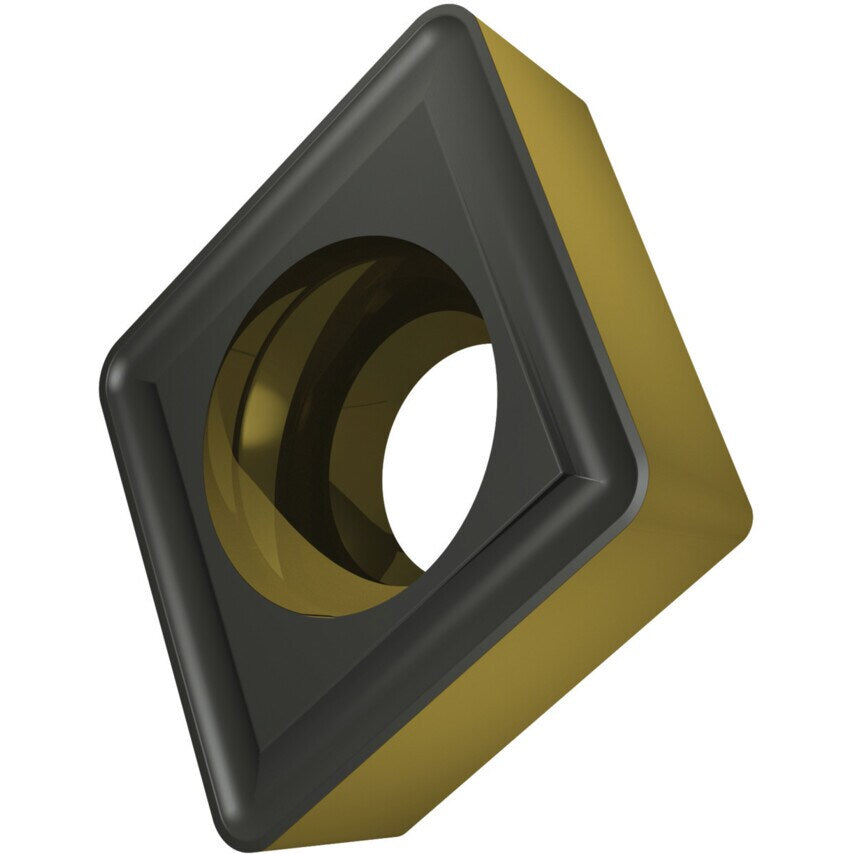

These single-sided 80 rhomboid CCMT turning inserts have a positive insert geometry and were designed for the fine to heavy machining of steels. The inscribed circle has a diameter of 12.7mm, 4.76mm thickness, and 1.2mm nose radius.
Features and Benefits
T9415 is the most advanced MT-CVD coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Typical Applications
Steel
Cast Steel
| Material | Carbide |
| Insert Size | 12 |
| Thickness | 4.76mm |
| Clearance Angle | 7\u00b0 |
| Product Type | Turning Inserts |
| Inscribed Circle | 12.7mm |
| Corner Radius | 1.2mm |
| Material Application | Cast Steel | Steels |
| Cutting Edge Length | 12.9mm |
| ISO Category Grade | M |
| Chipbreaker | RM3 |
| ISO Designation | CCMT120412E-RM3 |
| Finish/Coating | MT-CVD |
| MFR Part No. | 8345928 |
| Shape | 80\u00b0 Rhombic |
