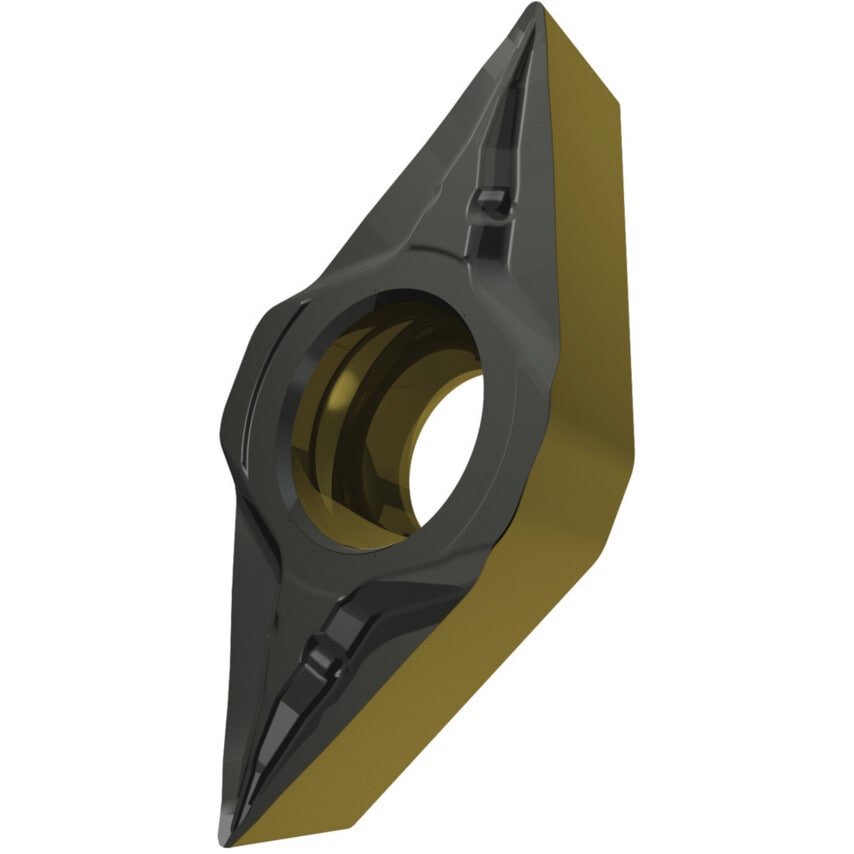

These single-sided 55 rhomboid DCMT turning inserts have a positive insert geometry and were designed for the fine to heavy machining of steels. The inscribed circle has a diameter of 6.35mm, 2.38mm thickness, and 0.2mm nose radius.
Features and Benefits
T9415 is the most advanced MT-CVD coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Typical Applications
Steel
Cast Steel
| Corner Radius | 0.2mm |
| Inscribed Circle | 6.35mm |
| Material | Carbide |
| MFR Part No. | 8345938 |
| Shape | 55\u00b0 Rhombic |
| Chipbreaker | UR |
| Material Application | Steels |
| Insert Size | 7 |
| Clearance Angle | 7\u00b0 |
| Finish/Coating | MT-CVD |
| ISO Designation | DCMT070202E-UR |
| Cutting Edge Length | 7.8mm |
| Thickness | 2.38mm |
