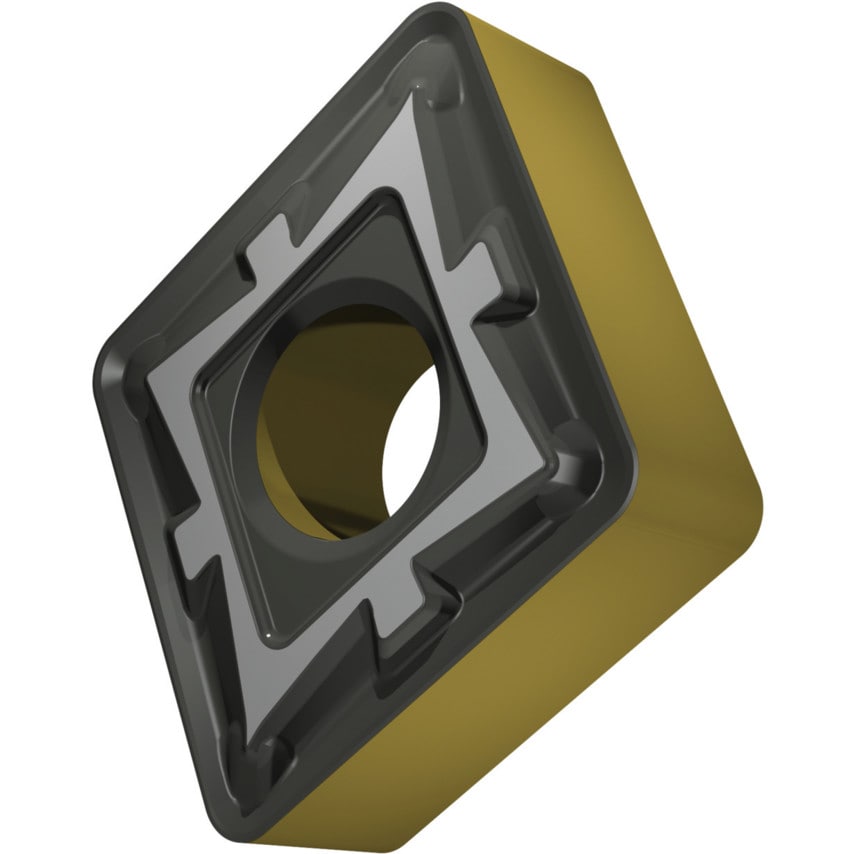

These double-sided 80 rhomboid CNMG turning inserts have a negative insert geometry and were designed for the fine to heavy machining of steels. The inscribed circle has a diameter of 15.75mm, 6.35mm thickness, and 1.2mm nose radius.
Features and Benefits
T9415 is the most advanced MT-CVD coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Typical Applications
Steel
Cast Steel
| Corner Radius | 1.2mm |
| Finish/Coating | MT-CVD |
| MFR Part No. | 8244248 |
| Insert Size | 16 |
| ISO Designation | CNMG160612E-M |
| Material | Carbide |
| Cutting Edge Length | 16.1mm |
| Chipbreaker | M |
| Inscribed Circle | 15.88mm |
| Material Application | Steels |
| Shape | 80\u00b0 Rhombic |
| Thickness | 6.35mm |
