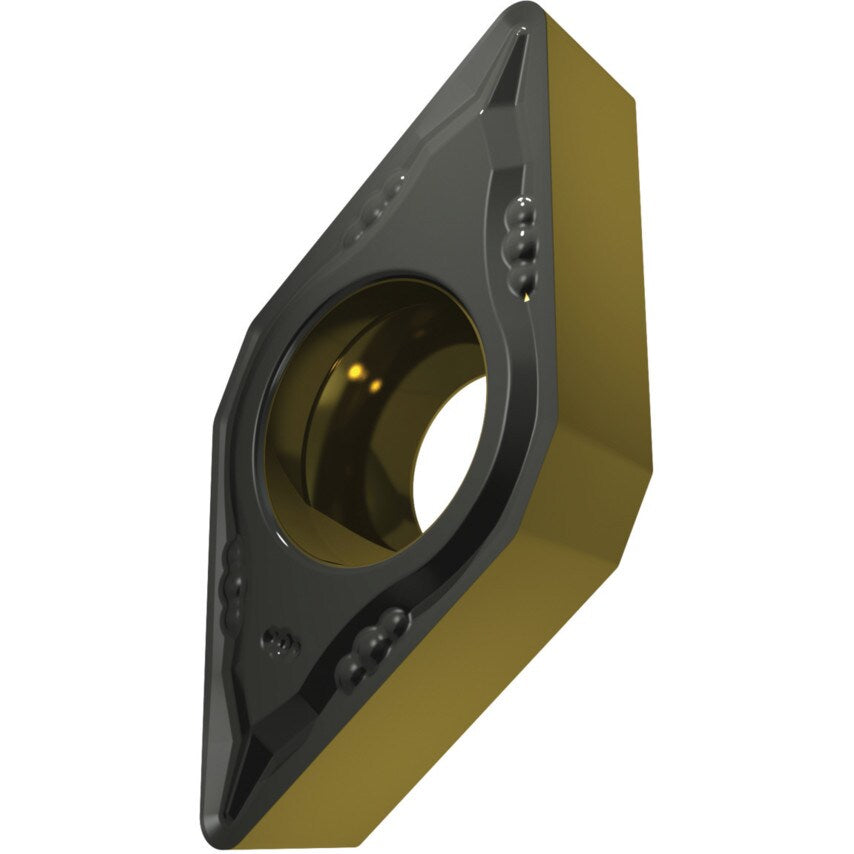

These single-sided 55 rhomboid DCMT turning inserts have a positive insert geometry and were designed for the fine to medium machining of steels. The inscribed circle has a diameter of 9.525mm, 3.97mm thickness, and a 0.8mm nose radius.
Features and Benefits
T9415 is the most advanced MT-CVD coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Typical Applications
Steel
Cast Steel
| Thickness | 3.97mm |
| MFR Part No. | 8183840 |
| ISO Designation | DCMT11T308E-FM |
| Insert Size | 11 |
| Cutting Edge Length | 11.6mm |
| Finish/Coating | MT-CVD |
| Corner Radius | 0.8mm |
| Material | Carbide |
| Material Application | Cast Steel | Steels |
| Product Type | Turning Inserts |
| Chipbreaker | FM |
| Inscribed Circle | 9.53mm |
| Shape | 55\u00b0 Rhombic |
| Clearance Angle | 7\u00b0 |
