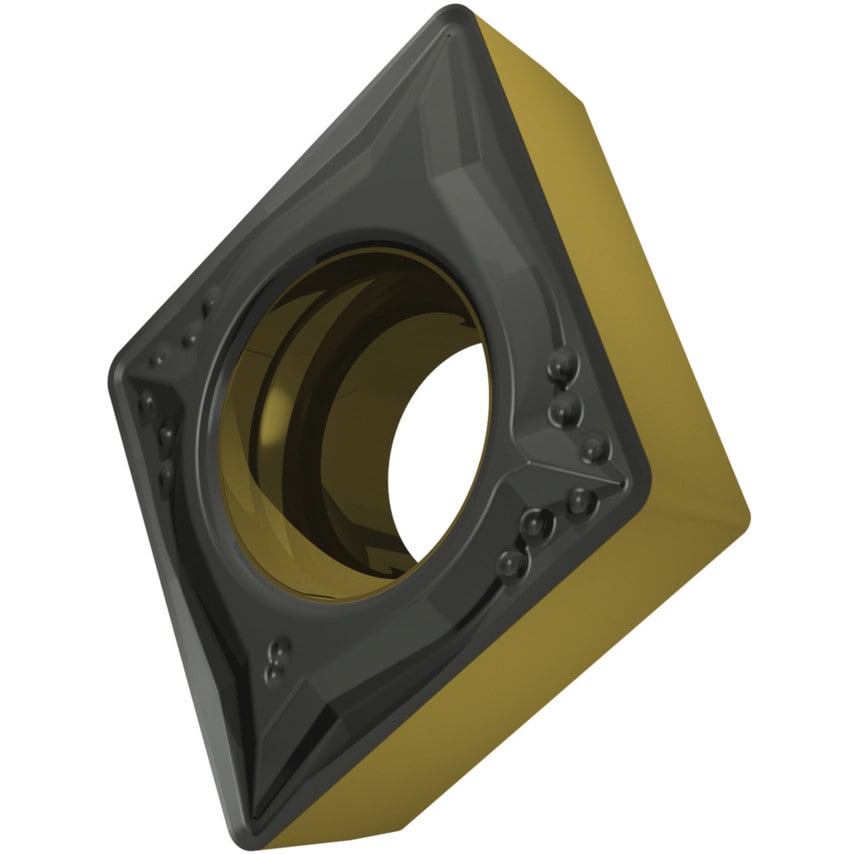

These single-sided 80 rhomboid CCMT turning inserts have a positive insert geometry and were designed for the fine to heavy machining of steels. The inscribed circle has a diameter of 6.35mm, 2.38mm thickness, and 0.4mm nose radius.
Features and Benefits
The insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions
Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds
Typical Applications
Steel
Cast Steel
Cast Iron
| Material Application | Cast Iron | Cast Steel | Steels |
| MFR Part No. | 8244360 |
| Inscribed Circle | 6.35mm |
| Insert Size | 6 |
| Thickness | 2.38mm |
| Finish/Coating | MT-CVD |
| Clearance Angle | 7\u00b0 |
| Product Type | Turning Inserts |
| ISO Designation | CCMT060204E-FM |
| Cutting Edge Length | 6.4mm |
| Chipbreaker | FM |
| Shape | 80\u00b0 Rhombic |
| Corner Radius | 0.4mm |
| Material | Carbide |
