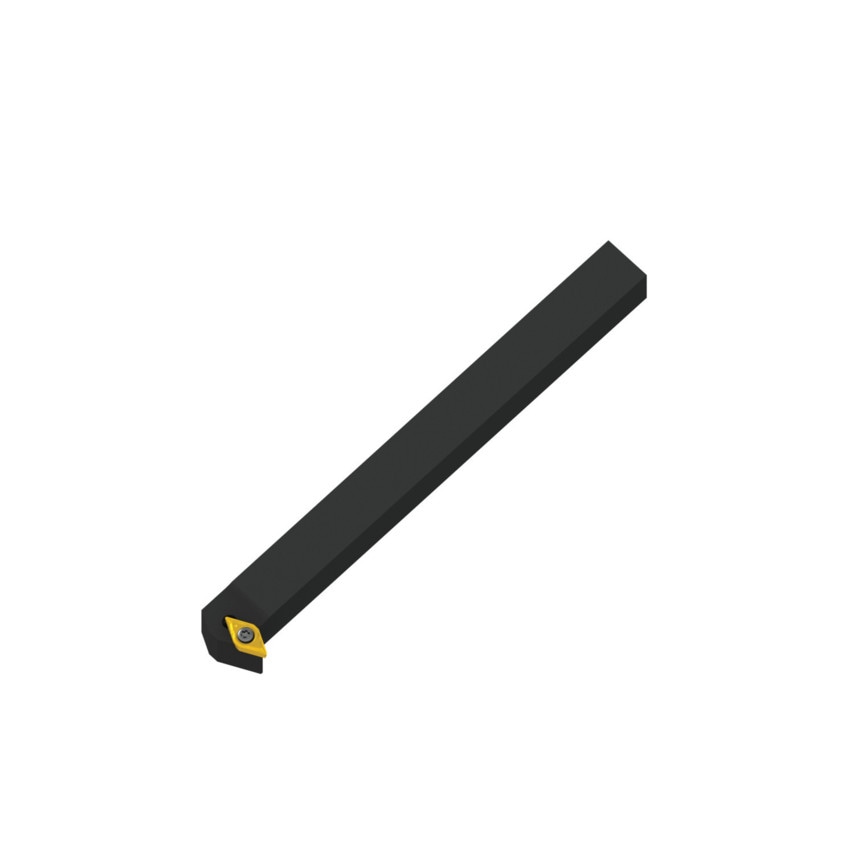

Sdxcr 1212 K 07-S External Turn Holder Right Hand

These screw clamp turning tool holders were designed to hold a 55 rhombus positive insert with an inscribed circle diameter of 6.35mm and a thickness of 2.38mm. Each tool holder is designed for use with either the user's left or right hand. 12mm tool height x 12mm width x 125mm long for taper turning, chamfering, multi-directional copy turning, and longitudinal turning with and without shoulder. Features and Benefits Nickelized for higher oxidation and wear resistance Internal coolant channels improve insert tool life Improved chip evacuation provides high surface quality and reliability Typical Applications Hardened materials Cast iron Stainless steel Non-ferrous metals Steel Cast steel High-temperature alloys

ISO Designation	SDXCR 1212 K 07-S
Insert Holding Type	Screw clamp
Toolholder Style	SDXC
Insert Shape	55\u00b0 Rhombic
Insert Style	DC
Set Type	Individual Toolholder
Cutting Direction	Right Hand
Insert Size	702
MFR Part No.	8181051
Overall Length (l1)	125mm
