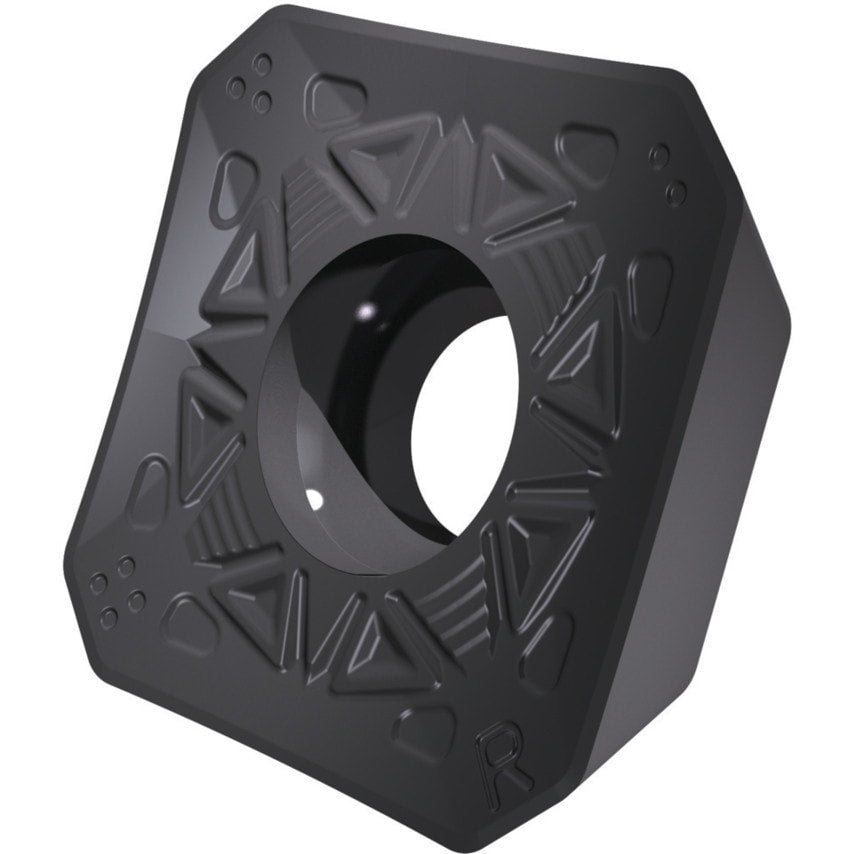

SDMT is a double-sided square milling insert with a maximum depth of cut of 6.4mm. This milling insert was designed for the machining of steel and cast steel, with face mills SSD13F, and features PVD coated, functionally graded, WC-Co carbide.Features and BenefitsPVD coating for improved heat and wear resistance 16-edged pressed insert Typical ApplicationsStainless SteelSteelCast SteelHigh-temperature alloys

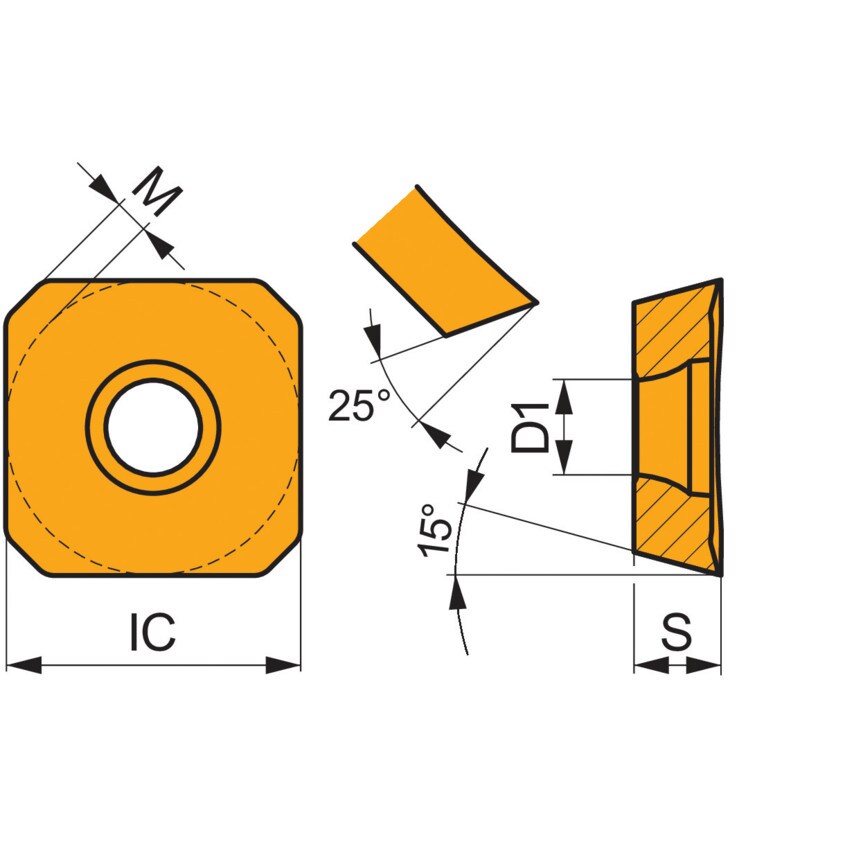

| Clearance Angle | 15\u00b0 |
| Chipbreaker | R |
| ISO Designation | SDMT13T3AFSN-R |
| Inscribed Circle | 13.38mm |
| ISO Cut | H05 to H15 | K01 to K10 | P01 to P10 |
| Shape | Square |
| Material Application | Hardened Materials |
| MFR Part No. | 8202694 |
