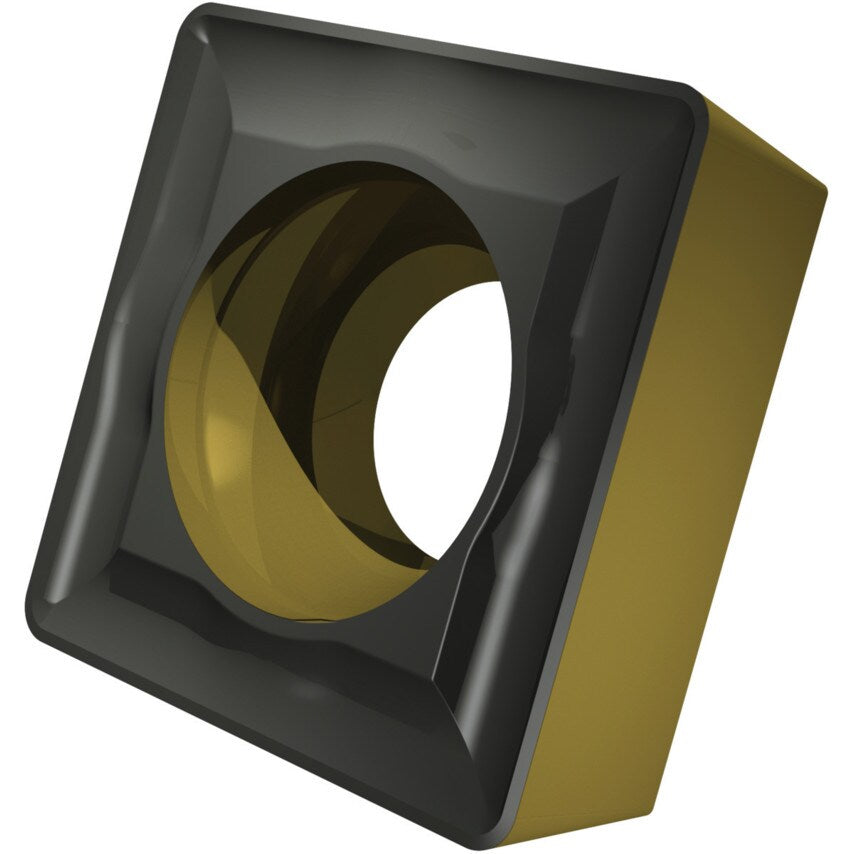

SCMT 120408E-RM3 T9415 Turning Insert - Positive

These single-sided square SCMT turning inserts have a positive insert geometry and were designed for the fine to heavy machining of steels. The inscribed circle has a diameter of 12.7mm, 4.76mm thickness, and a 0.8mm nose radius. Features and Benefits Each insert is of the highest coated turning grade, bringing greater stability and performance in a variety of cutting conditions Thicker coating significantly improves tool durability and increases productivity by allowing for higher cutting speeds Processed post-treatment to improve the toughness and reliability of cutting-edge Typical Applications Steel Cast Steel

Material	Carbide
ISO Cut	P05 -P30
ISO Category	P
Cutting Edge Length	12.7mm
Finish/Coating	MT-CVD
Inscribed Circle	12.7mm
ISO Category Grade	P
Corner Radius	0.8
Clearance Angle	7\u00b0
Thickness	4.76mm
Material Application	Cast Steel
Chipbreaker	RM3
Insert Style	SCMT
MFR Part No.	8345964
Shape	Square
ISO Designation	SCMT 120408E-RM3
