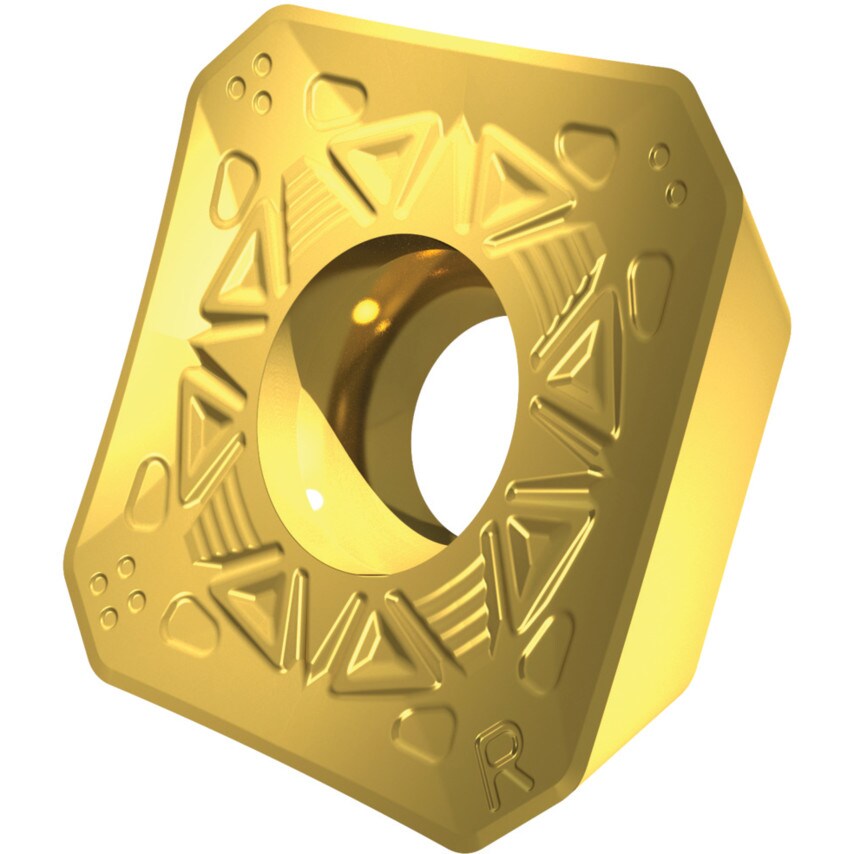

SDMT is a double-sided square milling insert with a maximum depth of cut of 6.4mm. This milling insert was designed for the machining of steel and cast steel, with face mills SSD13F, and features PVD coated, functionally graded, WC-Co carbide.Features and BenefitsPVD coating for improved heat and wear resistance 16-edged pressed insert Typical ApplicationsStainless SteelSteelCast SteelHigh-temperature alloys
| Chipbreaker | R |
| Clearance Angle | 15\u00b0 |
| Inscribed Circle | 13.38mm |
| ISO Designation | SDMT13T3AFSN-R |
| Shape | Square |
| MFR Part No. | 8202696 |
| Material Application | Cast Iron | Cast Steel | Stainless Steels | Steels |
| ISO Cut | P25 to P50 |
