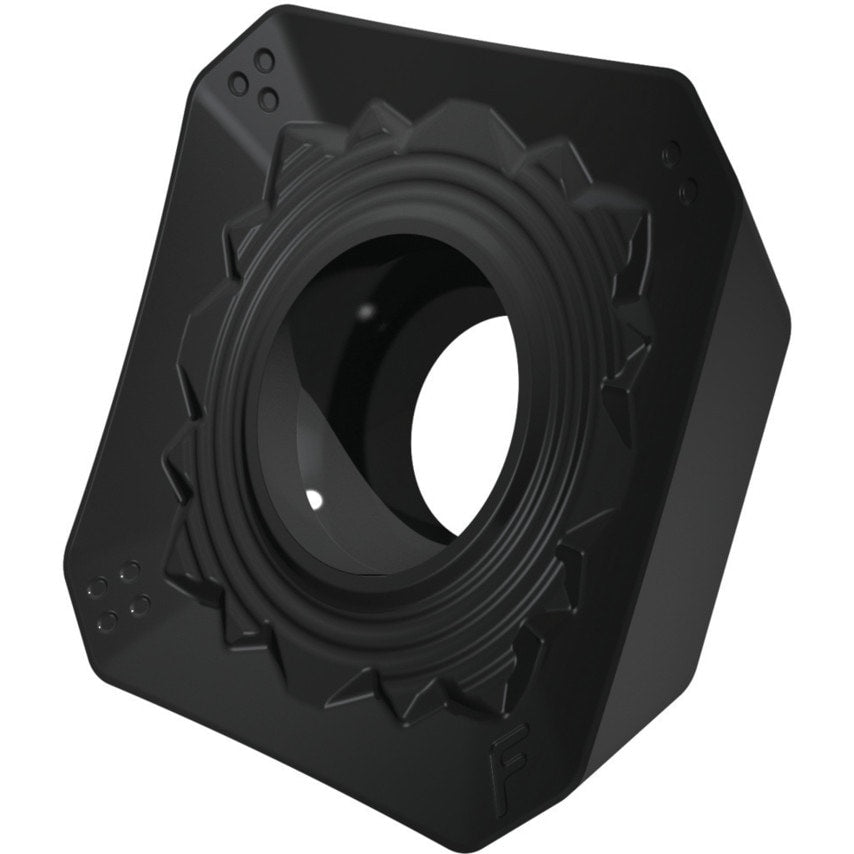

SDET is a square single-sided milling insert with a maximum depth of cut of 6.4mm. These milling inserts were designed for the machining of steel, cast steel, non-ferrous metals, and high-temperature alloys with face mills SSD13F, and feature PVD-coated, functionally graded WC-Co carbide.Features and BenefitsPVD coating provides improved heat and wear resistance Insert is economical and precise...Designed for face milling for general engineering and maintenanceTypical ApplicationsStainless SteelSteelCast SteelNon-ferrous metalsHigh-temperature alloys

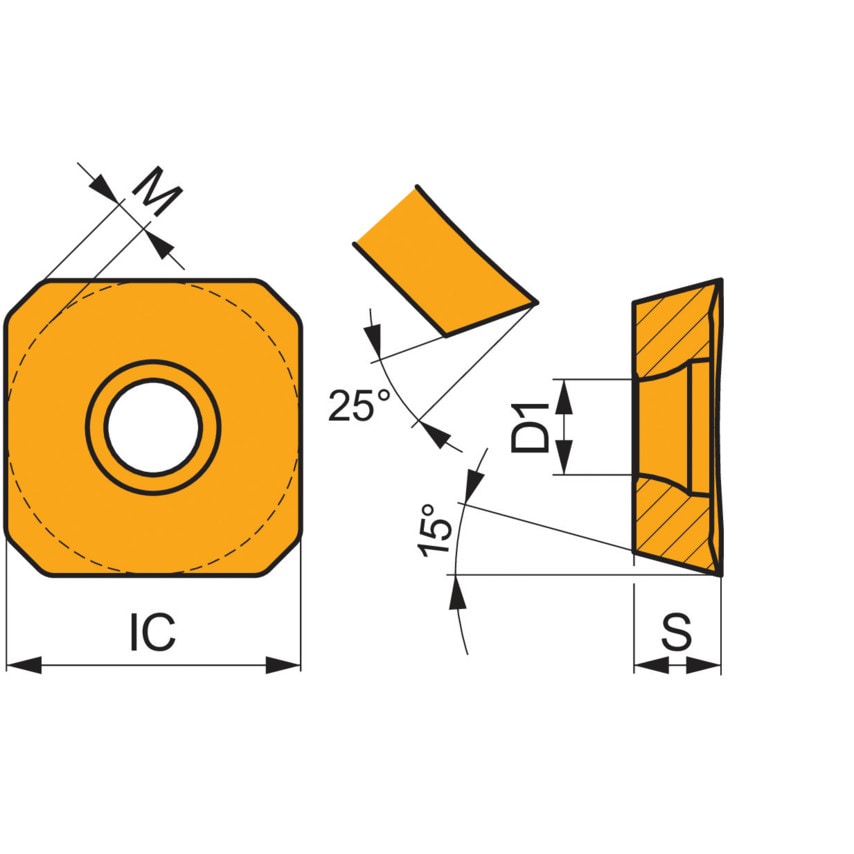

| ISO Designation | SDET13T3AFSN-F |
| MFR Part No. | 8202684 |
| Inscribed Circle | 13.38mm |
| Clearance Angle | 15\u00b0 |
| Product Type | Face Mill Insert |
| ISO Cut | M30 to M40 | P35 to P50 | S15 to S20 |
| Chipbreaker | F |
| Material Application | Cast Steel | High-Temperature Alloys | Stainless Steels | Steels |
| Shape | Square |
