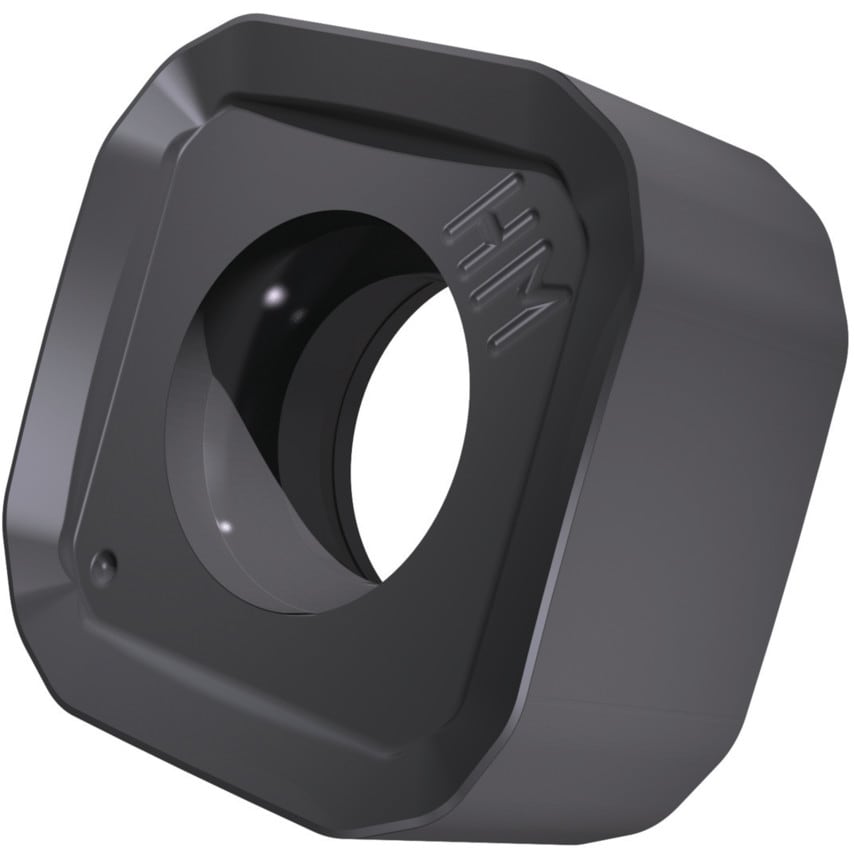

SNGX 1104 is a square double-sided milling insert with a maximum depth cut of 1.7mm and a 1.6mm corner radius. This milling insert was designed for the machining of steel with high feed cutters SSN11.Features and BenefitsRounded cutting edges provide a highly productive solution for a wide range of applicationsStable clamping and strong cutting-edge ideal for high-feed millingPVD coating provides long tool life and excellent breakage resistance, while also reducing chatterTypical ApplicationsMillingSteelCast steelCast iron

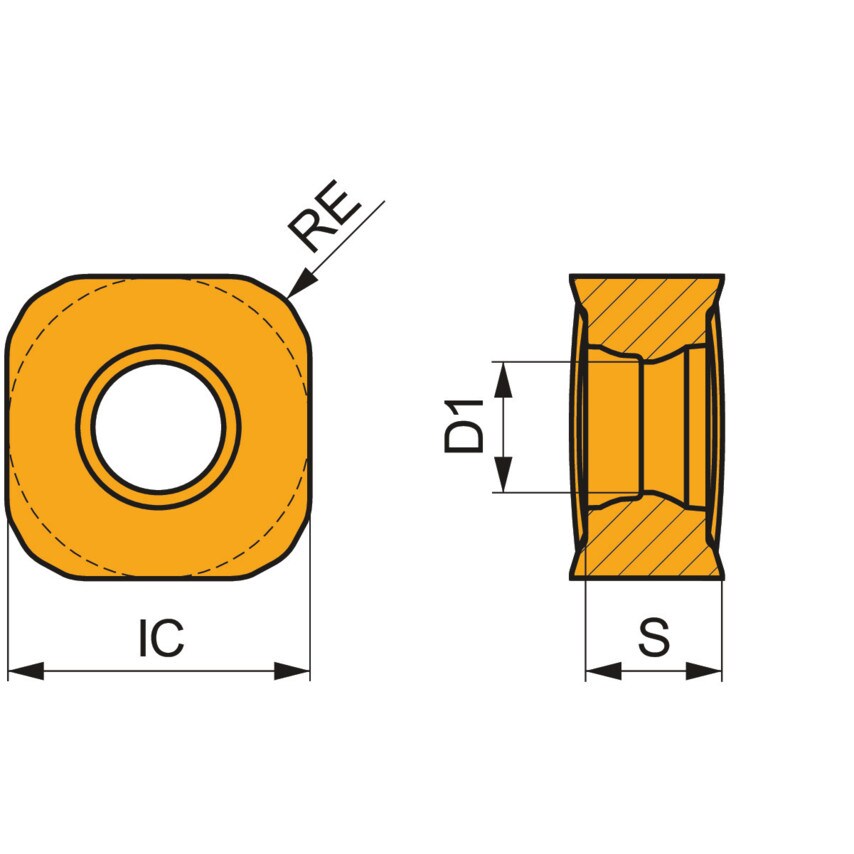

| ISO Designation | SNGX 110416SR-HM |
| Inscribed Circle | 10.6mm |
| Material | Carbide |
| Thickness | 4.76mm |
| Finish/Coating | Coated |
| MFR Part No. | 8174564 |
| ISO Cut | H05 to H15 | K01 to K10 | P01 to P10 |
| Chipbreaker | HM |
| Corner Radius | 1.6mm |
| Material Application | Cast Iron | Cast Steel | Hardened Steel | Steels |
| Shape | Square |
