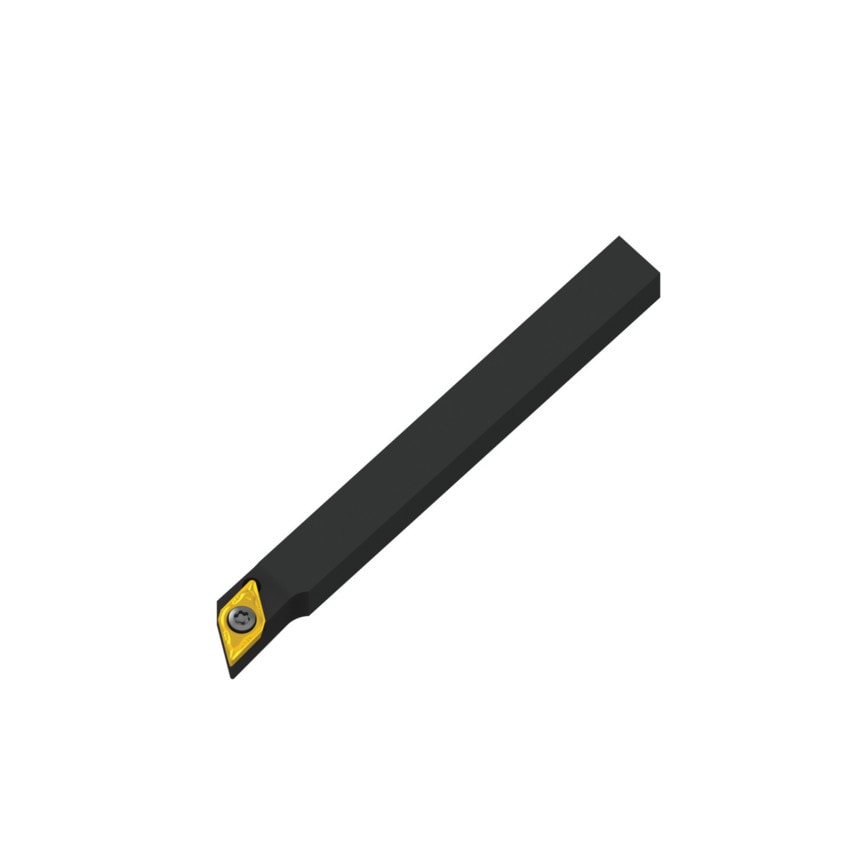

SDJCR 1212 K 11-S External Turn Holder Right Hand

These screw clamp turning tool holders were designed to hold a 55 rhombus positive insert with an inscribed circle diameter of 9.525mm and a thickness of 3.97mm. Each tool holder is designed for left or right-handed use. 16mm tool height x 16mm width x 125mm long for taper turning, and longitudinal turning without shoulder. Features and Benefits Nickelized for higher oxidation and wear resistance Internal coolant channels improve insert tool life Improved chip evacuation provides high surface quality and reliability Typical Applications Hardened materials Cast iron Stainless steel Non-ferrous metals Steel Cast steel High-temperature alloys

Insert Size	11T3
Cutting Direction	Right Hand
Overall Length (l1)	125mm
Insert Holding Type	Screw clamp
ISO Designation	SDJCR 1212 K 11-S
Set Type	Individual Toolholder
Insert Shape	55\u00b0 Rhombic
Toolholder Style	SDJC
MFR Part No.	8181046
Insert Style	DC
