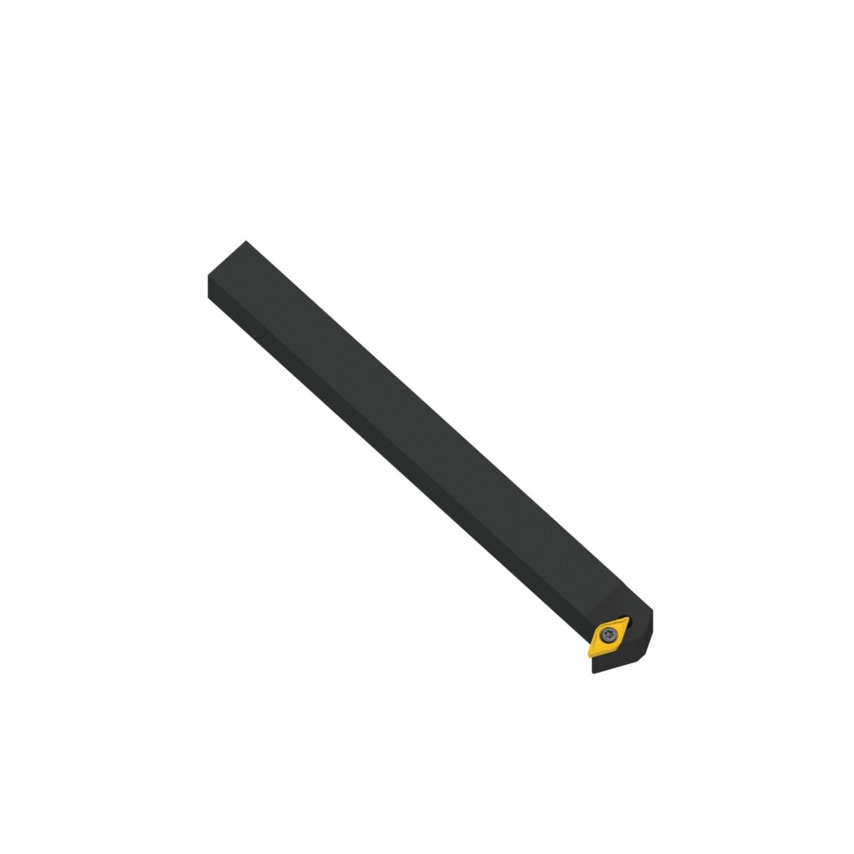

These screw clamp turning tool holders were designed to hold a 55 rhombus positive insert with an inscribed circle diameter of 6.35mm and a thickness of 2.38mm. Each tool holder is designed for use with either the user's left or right hand. 12mm tool height x 12mm width x 125mm long for taper turning, chamfering, multi-directional copy turning, and longitudinal turning with and without shoulder.
Features and Benefits
Nickelized for higher oxidation and wear resistance
Internal coolant channels improve insert tool life
Improved chip evacuation provides high surface quality and reliability
Typical Applications
Hardened materials
Cast iron
Stainless steel
Non-ferrous metals
Steel
Cast steel
High-temperature alloys
| Insert Style | DC |
| Insert Holding Type | Screw clamp |
| Set Type | Individual Toolholder |
| MFR Part No. | 8181049 |
| Cutting Direction | Left Hand |
| Toolholder Style | SDXC |
| Overall Length (l1) | 125mm |
| Insert Size | 702 |
| Insert Shape | 55\u00b0 Rhombic |
| ISO Designation | SDXCL 1212 K 07-S |
