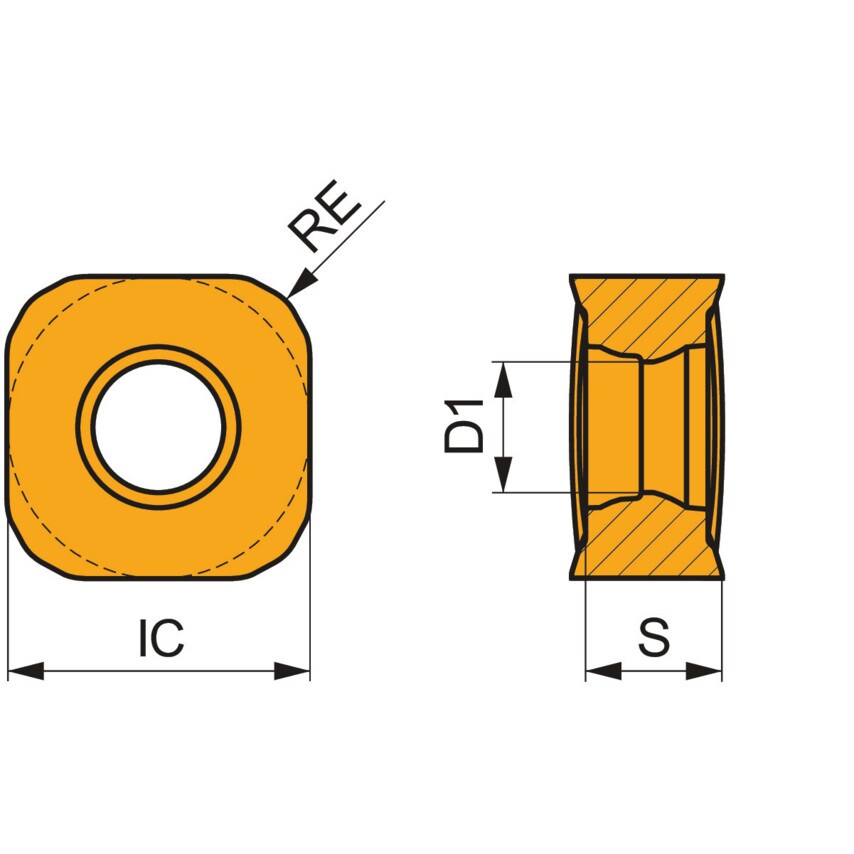

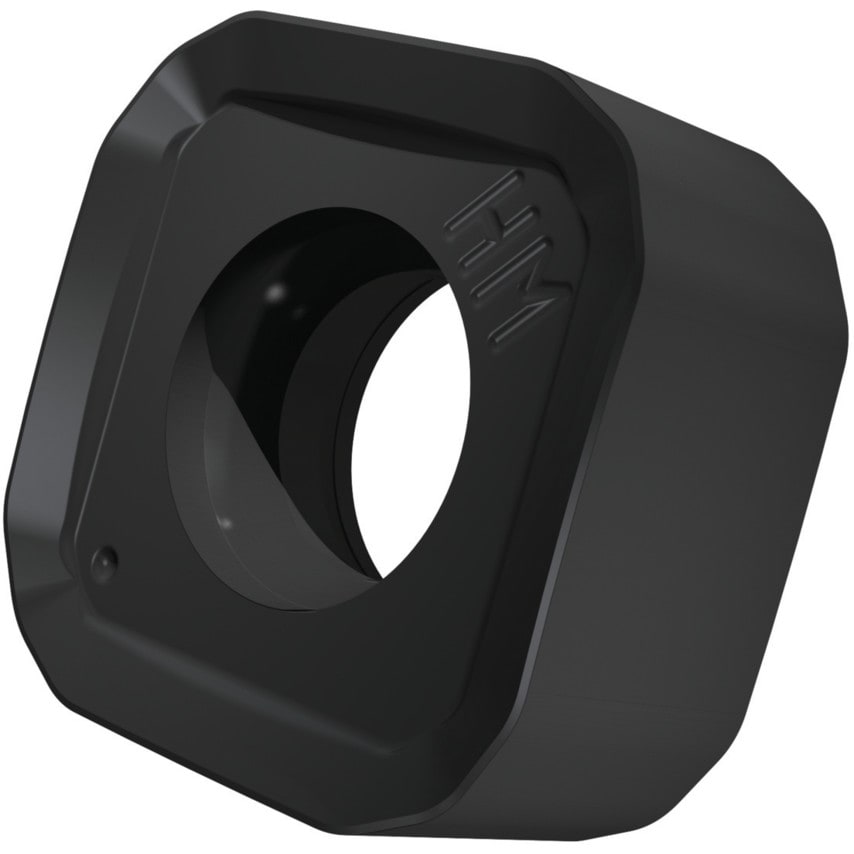

SNGX 1104 is a square double-sided milling insert with a maximum depth cut of 1.7mm and a 1.6mm corner radius. This milling insert was designed for the machining of steel with high feed cutters SSN11.Features and BenefitsRounded cutting edges provide a highly productive solution for a wide range of applicationsStable clamping and strong cutting-edge ideal for high-feed millingPVD coating provides long tool life and excellent breakage resistance, while also reducing chatterTypical ApplicationsMillingSteelCast steelCast iron
| Chipbreaker | HM |
| Material | Carbide |
| Material Application | Cast Iron | Cast Steel | Hardened Steel | Steels |
| Shape | Square |
| ISO Designation | SNGX 110416SR-HM |
| Finish/Coating | Coated |
| Thickness | 4.76mm |
| Corner Radius | 1.6mm |
| ISO Cut | K10 to K30 | P10 to P30 |
| Inscribed Circle | 10.6mm |
| MFR Part No. | 8174620 |
