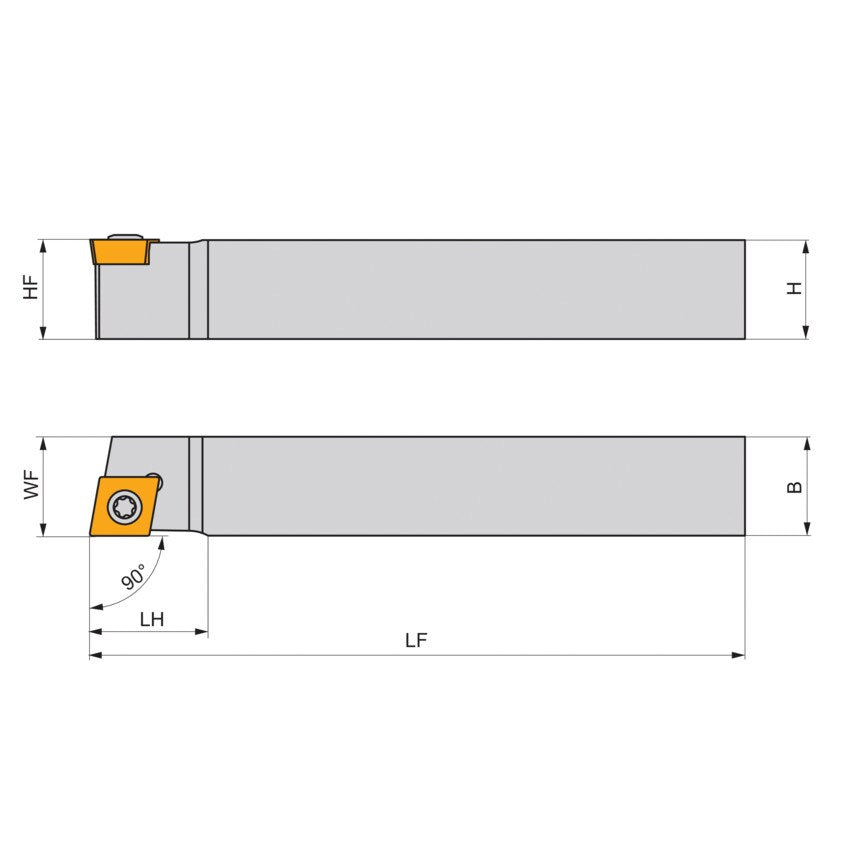

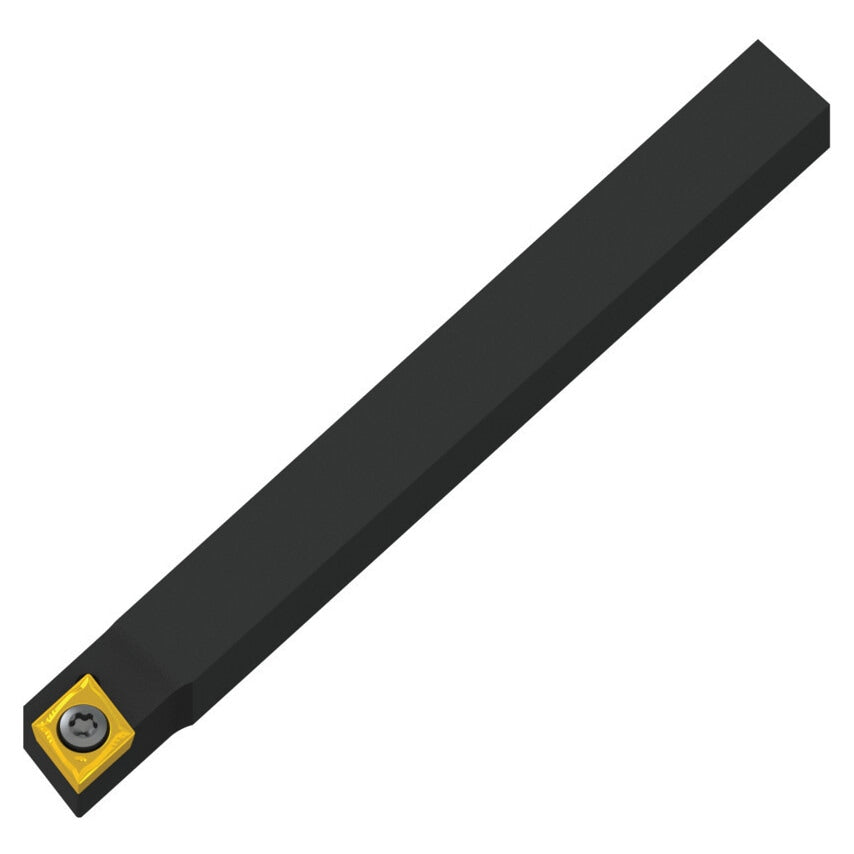

SCACR 1212 K 09-S External Turn Holder Right Hand

These screw clamp turning tool holders were designed to hold an 80 rhombus positive insert with an inscribed circle diameter of 9.525mm and a thickness of 3.97mm. Each tool holder is designed for left or right-handed use. 12mm tool height x 12mm width x 125mm long for taper turning, chamfering, and longitudinal turning without shoulder. Features and Benefits Nickelized for higher oxidation and wear resistance Internal coolant channels improve insert tool life Improved chip evacuation provides high surface quality and reliability Typical Applications Hardened materials Cast iron Stainless steel Non-ferrous metals Steel Cast steel High-temperature alloys

ISO Designation	SCACR 1212 K 09-S
Insert Size	09T3
Insert Shape	80\u00b0 Rhombic
Toolholder Style	SCAC
Set Type	Individual Toolholder
Cutting Direction	Right Hand
Insert Holding Type	Screw clamp
Insert Style	CCMT
MFR Part No.	8181032
Overall Length (l1)	125mm
